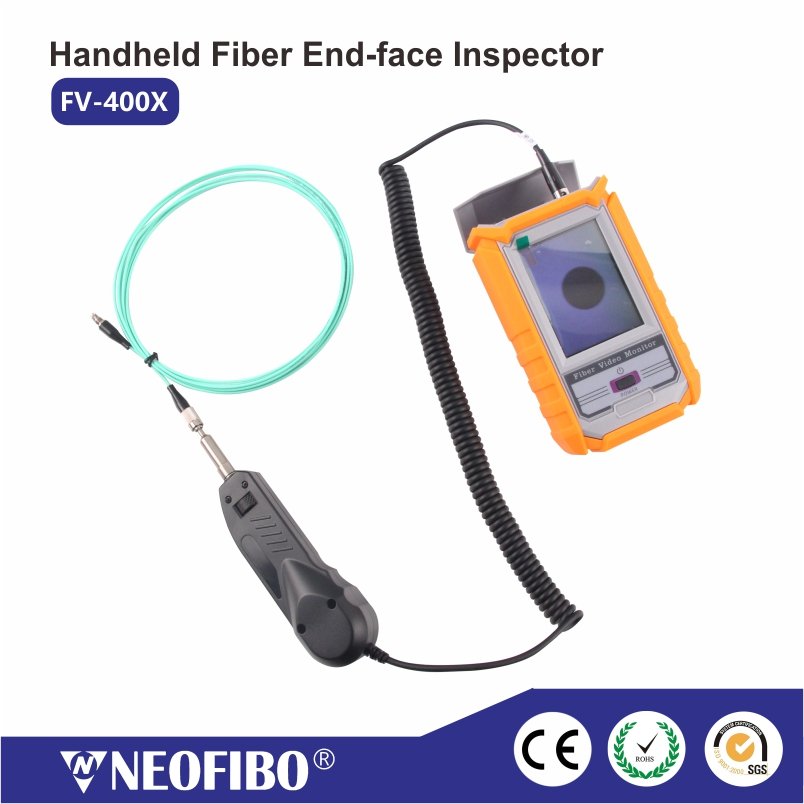

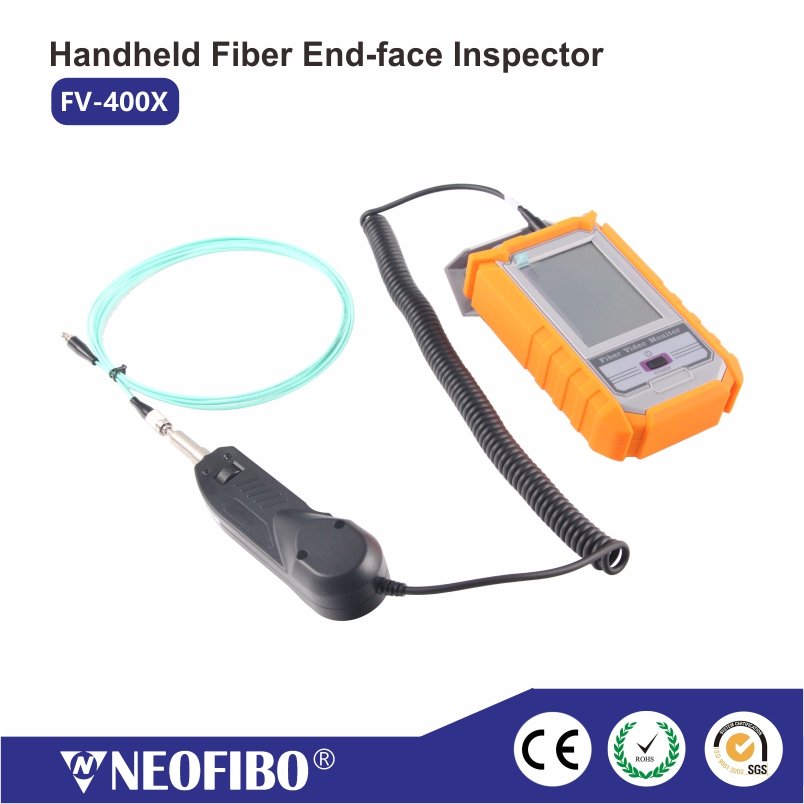

Portable Handheld Fiber End-face Inspector，FV-400X
Product description:
FV-400X is a portable handheld fiber optic end-face tester, which can be used to test many kinds of fiber optic connector end-faces with a wide range of testing, fast speed and clear magnification. This device is equipped with 4 types of test probes, a wide range of applications; 3.5-inch 220,000-pixel TFT high-definition LCD display, the picture is clear and large enough; hand-held detector scientific focusing and non-slip design, more comfortable to use.
Product Features:
- Unique unidirectional focusing design, 1-3s fast identification of end face;

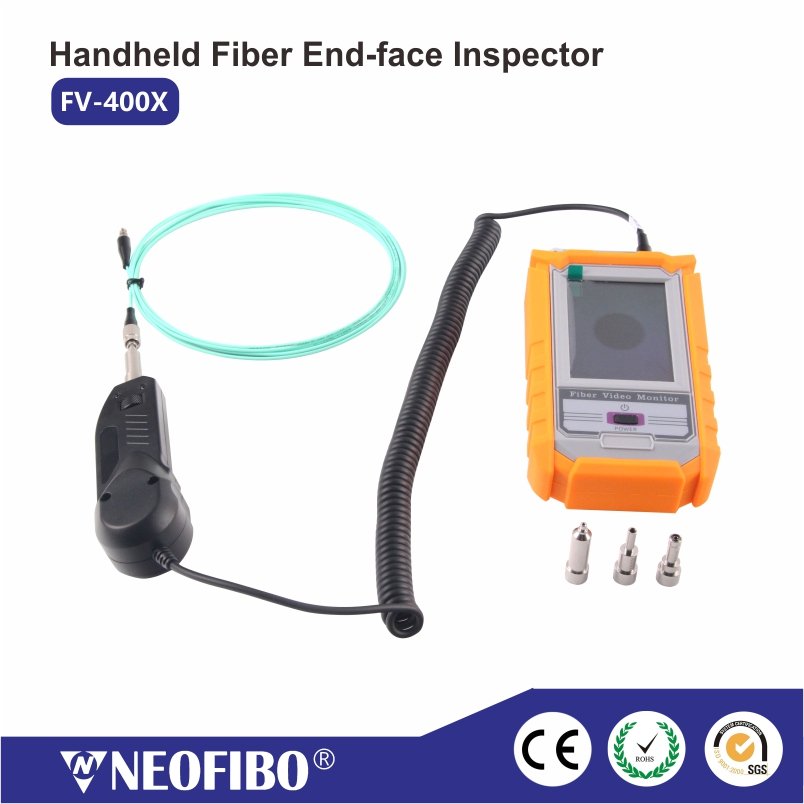

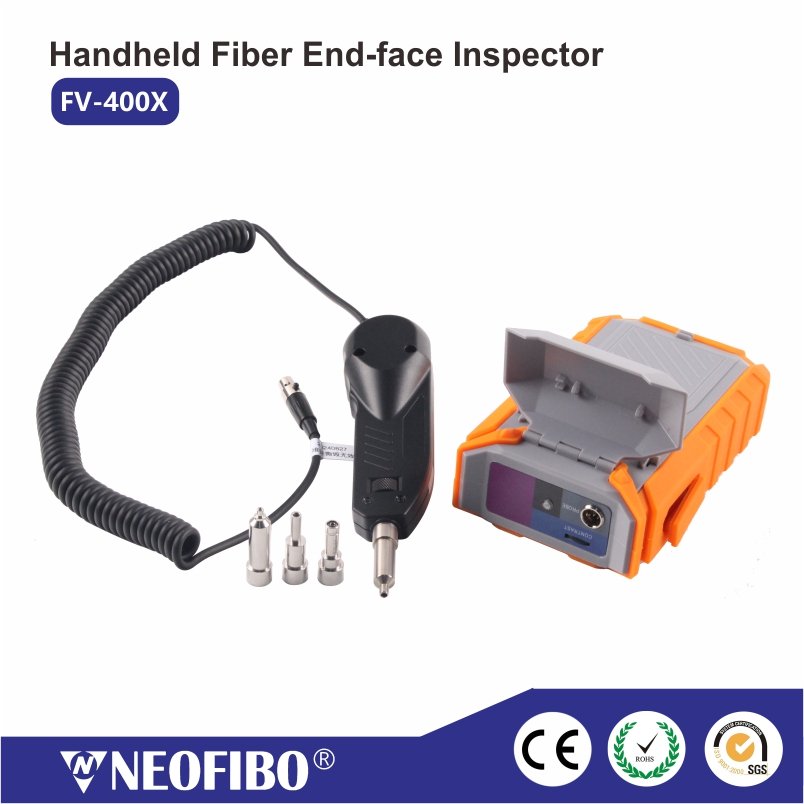

- Equipped with 4 different inspection probes to meet different inspection needs of customers;
- Detection effect meets IEC requirements;
- Anti-slip design of the inspection handle, more convenient operation;
- 5-inch large LCD display, easier to judge the condition of the endface;
- Screen brightness can be adjusted, more conducive to end face observation.
Application：
Suitable for DWDM/SDH/SONET equipment and various fiber optic transmission racks/optical switches/optical distribution boxes.

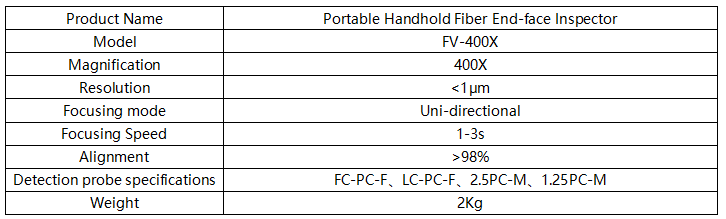

Product Parameters：
| Product Name | Portable Handhold Fiber End-face Inspector |
| Model | FV-400X |
| Magnification | 400X |
| Resolution | <1μm |
| Focusing mode | Uni-directional |
| Focusing Speed | 1-3s |
| Alignment | >98% |
| Detection probe specifications | FC-PC-F、LC-PC-F、2.5PC-M、1.25PC-M |
| Weight | 2Kg |

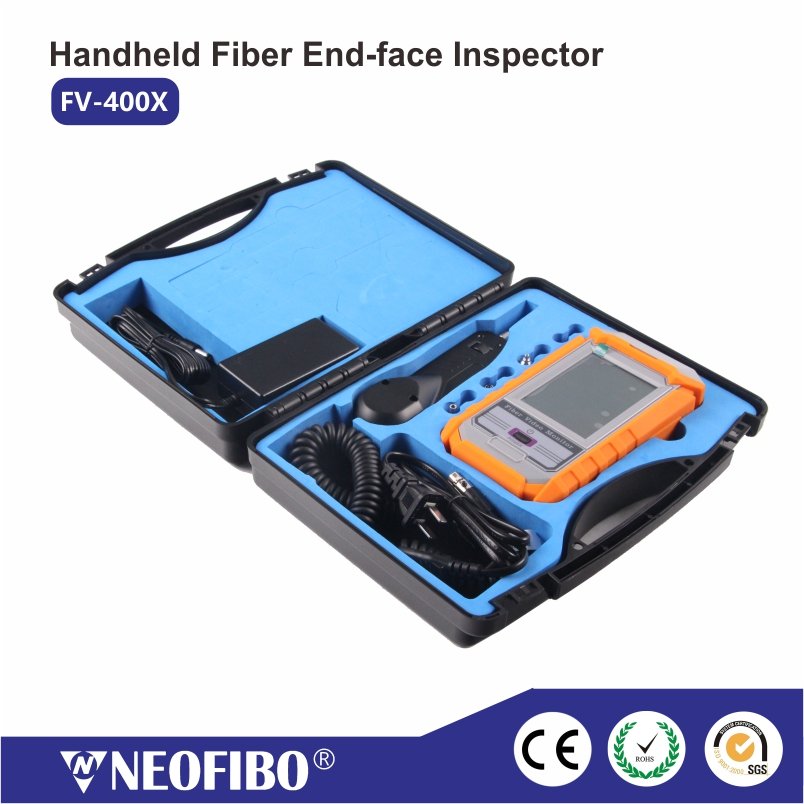

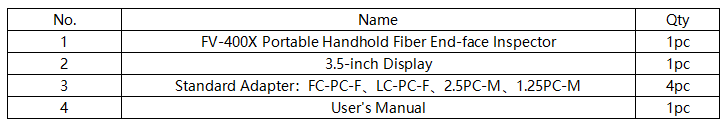

Product Configuration：
| No. | Name | Qty |
| 1 | FV-400X Portable Handhold Fiber End-face Inspector | 1pc |
| 2 | 3.5-inch Display | 1pc |
| 3 | Standard Adapter：FC-PC-F、LC-PC-F、2.5PC-M、1.25PC-M | 4pc |
| 4 | User’s Manual | 1pc |
