Neofibo fiber polishing film optik polishing film
1.Lapping Films are coated with precisely graded minerals (such as diamond, aluminum oxide, silicon carbide, silicon oxide, cerium oxide and so on) on the high strength polyester backing to provide a uniform, consistent finish.
2.Available in 0.01-45 μm grades,with or without PSA (Pressure Sensitive Adhesive) backing.
Key Feature:
1. Evenly-sprayed particles on coated surface.
2. Good intensity & flexility, suitable for polishing on different facets.
3. Suitable for polishing with dry, water or oil medium.
4. The fiber polishing film is durable polishing rate compared to existing polishing films and offers economical operations.
|
mesh
|
8000
|
6000
|
4000
|
3000
|
2000
|
1200
|
600
|
|
granularity(um)
|
1
|
2
|
3
|
5
|
9
|
15
|
30
|
|
specification
|
Disc:Φ70mm, Φ110mm, Φ127mm（5inch）, Φ203mm（8inch）
Sheet: 114mm×114mm, 152mm×152mm（6inch）, 228mm*228mm（9inch） |
||||||
|
Special products can be customized according to customers’ requirements
|
|||||||
1.Fiber-optic lapping film;
|
Product Type
|
Application
|
|
D
|

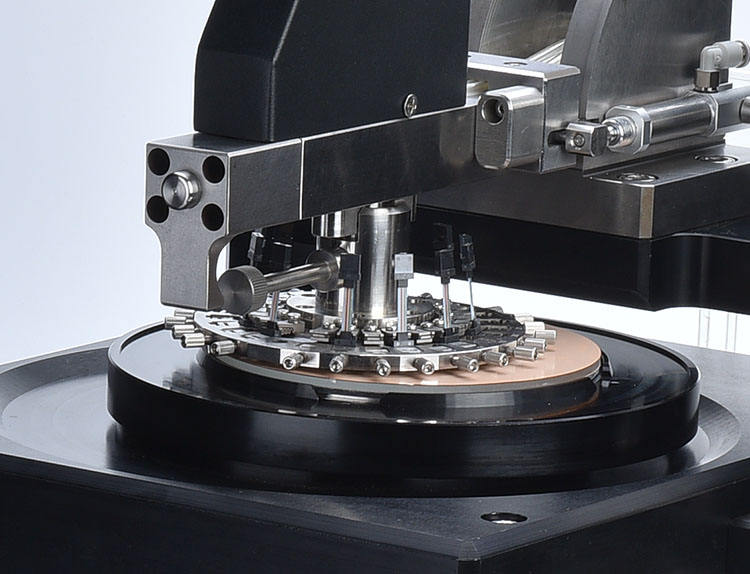

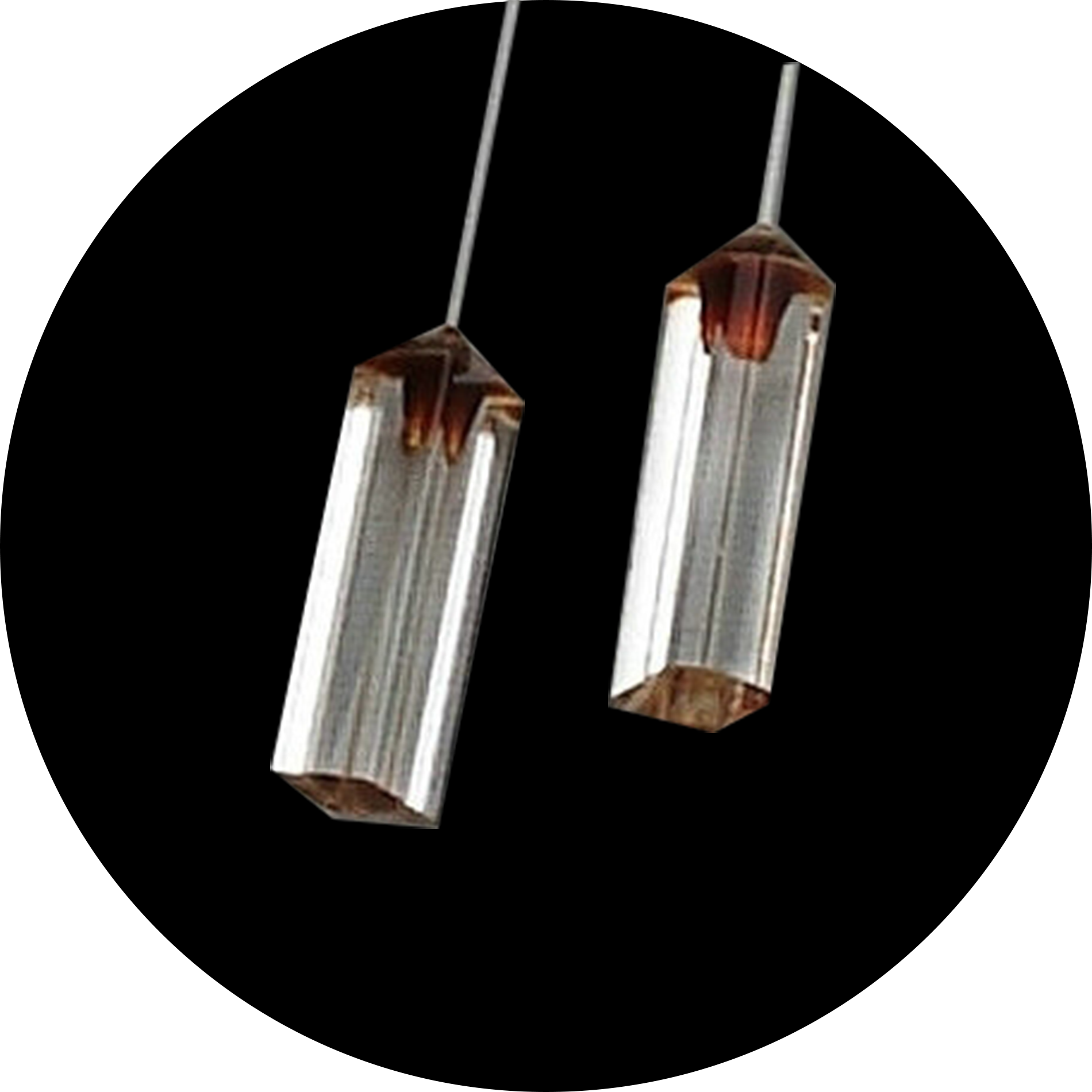

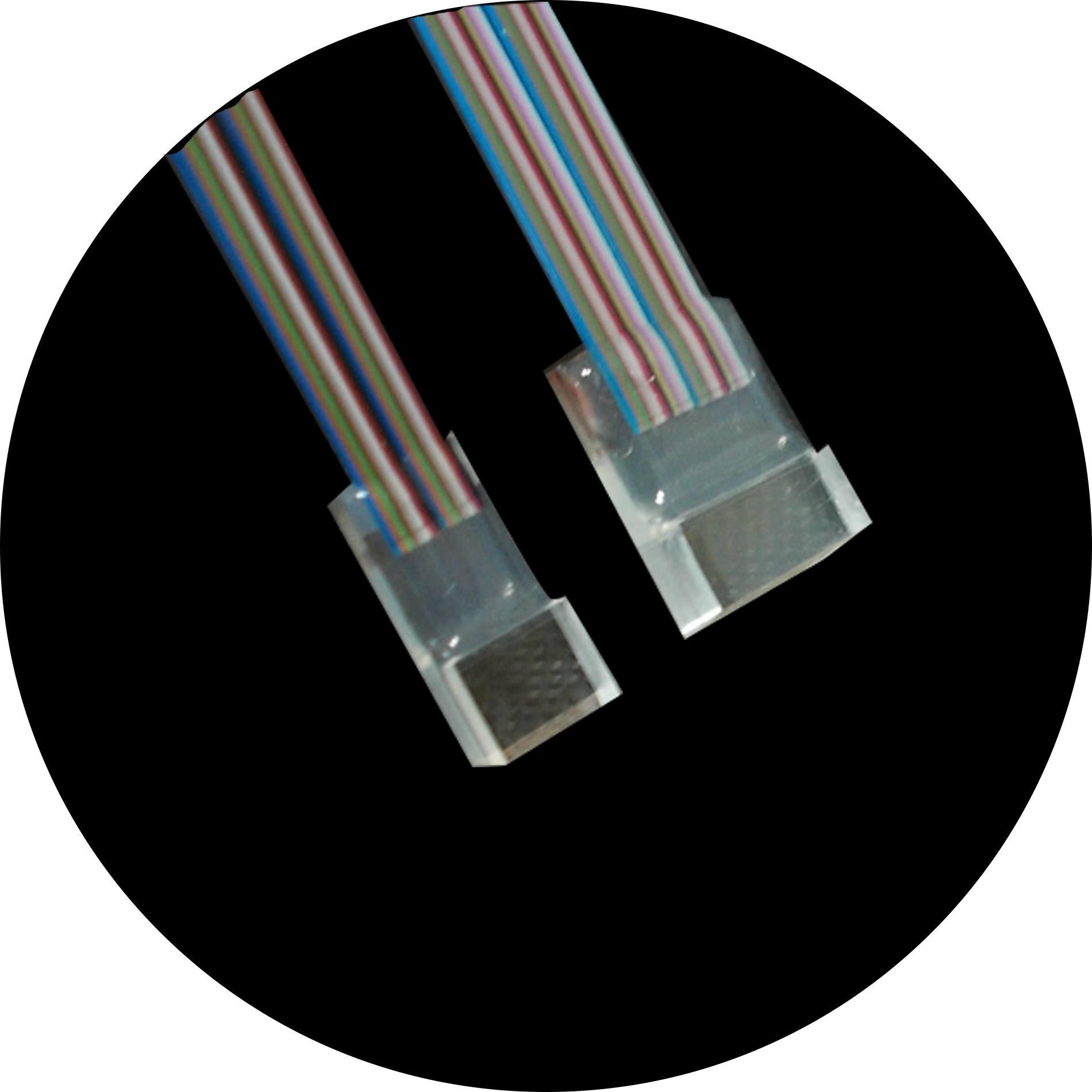

· Lapping for Fiber optic connector, fiber array, glass pig tail(angel removal, rough grinding, medium polishing, fine finishing)
·Polishing for magnetic heads and hard disks ·Lapping and polishing for optical glasses, optical crystal , LED ·Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.) ·Edge polishing for silicon wafer |
|
SC
|
·Epoxy and glass removal
·Lapping and polishing for plastic ferrules ·Fine finishing and polishing for magnetic heads |
|
AO
|
·Polishing for fiber optical connectors
·Polishing for silicon wafer used in Solar cells ·Polishing for hard disks ·Polishing for ITO ·Lapping and polishing for optical crystal |
|
CO
|
·The final polishing for fiber optical connectors
·Polishing for optical devices |
|
SO
|
·The final super-precise polishing of optical fiber connector
|
Polishing Effect
Geometry Test Result:
|
NO.
|
Parameters
|
UPC Criterion
|
APC Criterion
|
|
1
|
Radius of Curvature
|
5-25mm
|
5-12mm
|
|
2
|
Apex Offset
|
0-50μm
|
0-50μm
|
|
3
|
Fiber Height
|
-100~+50μm
|
-100~+50μm
|
|
4
|
Angle
|
n/a
|
8.00+/-0.50°
|
|
Polishing Process
|
4 Process
|
|
Return Loss
|
≥50dB
|
|
Top Curvatrue
|
10~25mm
|
|
Top Excursion
|
≤50μm
|
|
Core Hollow
|
≤0.1μm
|
|
Surface Roughness
|
≤50nm
|
Order information:
|
Part Number
|
Material
|
Application
|
Packing
|
|
GA5D-30um
|
Silicon Carbide
|
Epoxy Removal
|
20pcs/pack
|
|
DR5D-9um
|
Diamond
|
Coarse Polishing
|
20pcs/pack
|
|
DG5D-5um
|
Diamond
|
Medium Polishing
|
20pcs/pack
|
|
DH5D-3um
|
Diamond
|
Medium Polishing
|
20pcs/pack
|
|
DI5D-1.5um
|
Diamond
|
Fine Polishing
|
20pcs/pack
|
|
DJ5D-1um
|
Diamond
|
Final Polishing
|
20pcs/pack
|
|
XF5D-0.02um
|
Silicone Dioxide
|
UPC Final Polishing
|
100pcs/pack
|
|
D30-30um
|
Diamond
|
Adhesive Removal
|
50pcs/pack
|
|
D9-9um
|
Diamond
|
Coarse Polishing
|
50pcs/pack
|
|
D5-5um
|
Diamond
|
Medium Polishing
|
50pcs/pack
|
|
D3-3um
|
Diamond
|
Medium Polishing
|
50pcs/pack
|
|
D1-1um
|
Diamond
|
Fine Polishing
|
50pcs/pack
|
|
ADS-127
|
Silicone Dioxide
|
Final Polishing
|
100pcs/pack
|
|
SC-16um
|
Silicon Carbide
|
Medium Polishing
|
50pcs/pack
|
|
SC-3um
|
Silicon Carbide
|
Medium Polishing
|
50pcs/pack
|
|
SC-1um
|
Silicon Carbide
|
Fine Polishing
|
50pcs/pack
|
|
AA1-MFPS
|
Flocked Film Without Abrasive
|
MPO Polishing
|
50pcs/pack
|
|
CE1-MFPS
|
Flocked Film Without Abrasive
|
MPO Polishing
|
50pcs/pack
|
|
MFP610
|
Flocked Film Without Abrasive
|
MPO Final Polishing
|
50pcs/pack
|
|
Remark: (1) All polishing films could be manufactured according to custom design.
|
|||
|
(2) If you could not find the polishing films you want, please feel free to contact us via email or phone.
|
|||
- Selling Units:Multiple of 100 Package size per batch: 22X22X10 cm
- Gross weight per batch:2.000 kg

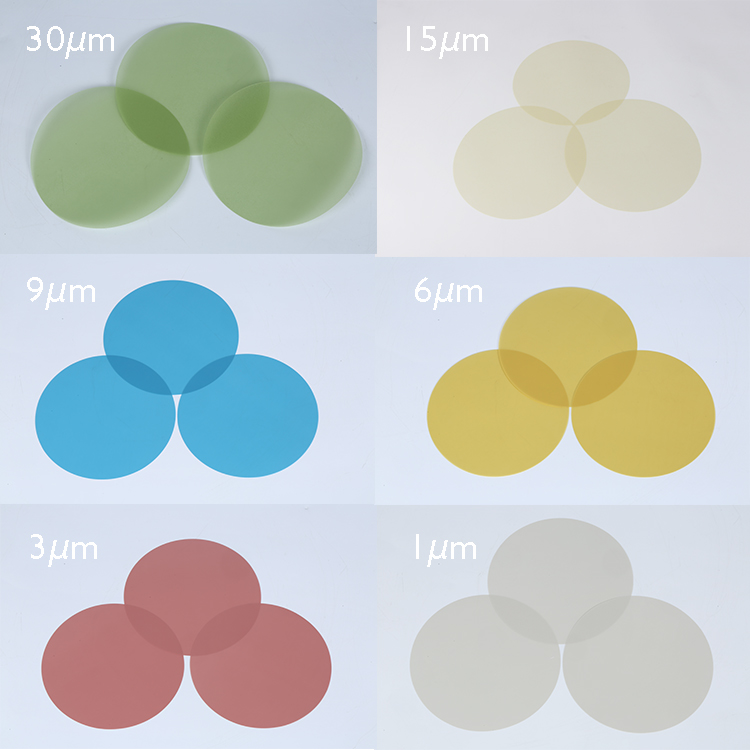

- Picture Example:
-
- Lead Time:
-
