    MiniMT-APC-24DM(6deg)Non-destructive Clamping Mini MT Ferrule Polishing Fixture Polishing Jig

    MiniMT-APC-24DM(6deg)Non-destructive Clamping Mini MT Ferrule Polishing Fixture Polishing Jig

    Model: MiniMT-APC-24DM(6deg)

    Place of Origin: Shenzhen, China

    Description:

    Description:

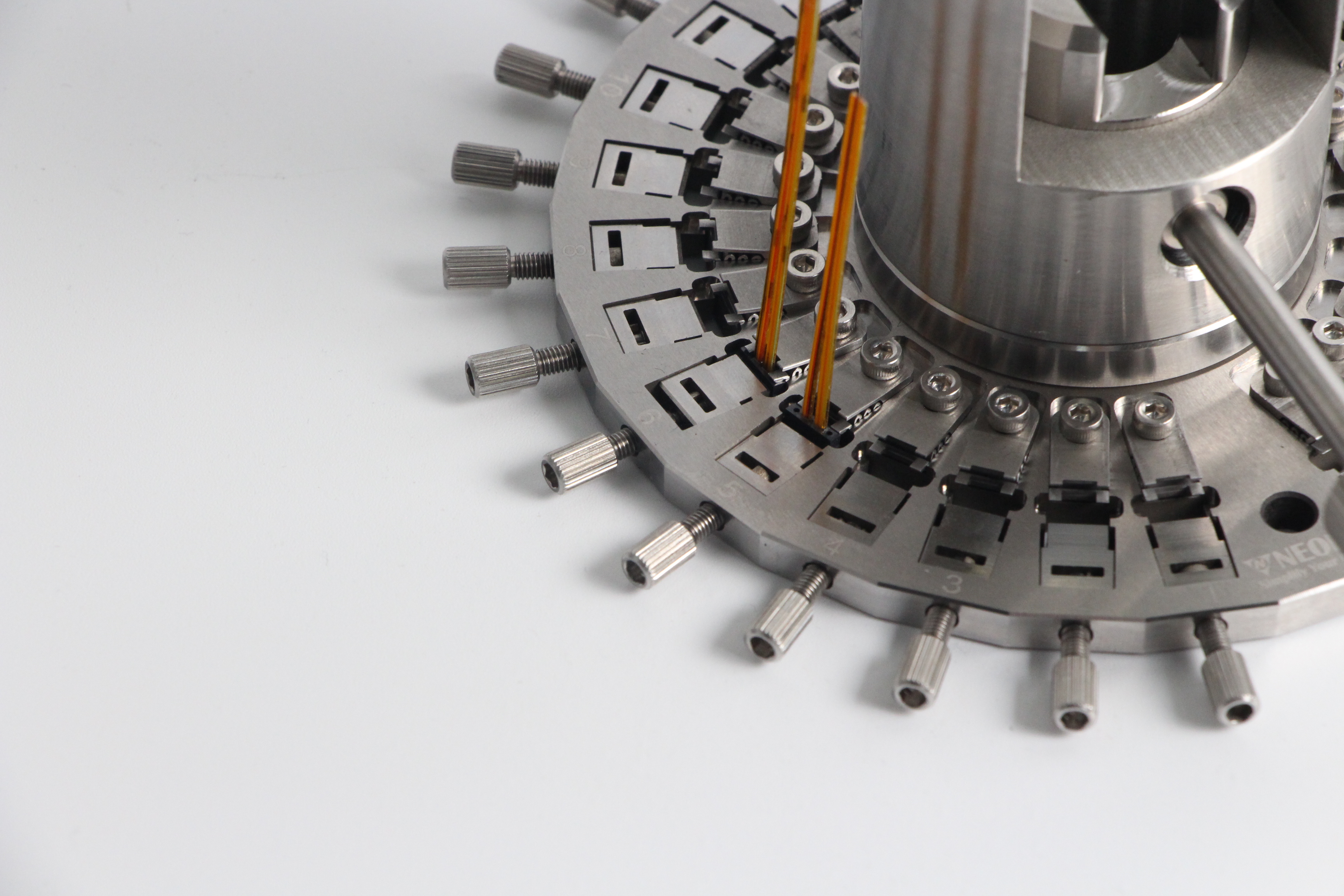

    miniMT-APC-24DM(6deg) miniMT ferrule polishing fixture is developed and designed by Shenzhen Neofibo Technology Limited, which is specialized in polishing mini MT ferrules. The product adopts flat push type screw locking method, the Z-axis can be adjusted to effectively control the polishing length of the light beam, excellent polishing effect of the end-face, can be customized for different diameters of the light beam polishing fixture.

    Key Features:

    • This kind of polishing fixturesis suitable for MT, miniMT, mini Jumper ferrules polishing;
    • It can polishingPC, APC end-face in, polishing 24 ferrules at a time;
    • Easy and quick loading fixture, rated torque fastening, non-destructive clamping;
    • A grade end-face and 3D yield, a pass rate of more than 95%.
    • Effective guarantee of polishing angle ±15 degree;
    • CustomizationAPC 8 degree/6 degree and other angle clamps;
    • Suitable for NeofiboFPM-5000 polishing machine;
    • The polishing fixture has the characteristics of high reliability and high consistency.

    Applications:

    MT, miniMT, mini Jumper ferrules.

    Technical Parameters:

    Model miniMT-APC-24DM(6deg)
    Disk Diameter 127mm
    Maximum number of cores 24 positions
    Grinding product category miniMT ferrules
    X-axis angle control (degree) ≤0.15
    Y-axis angle control (degree) ≤0.15
    Applicable models FPM-5000
    Net weight 0.8 kgs
    Gross weight 1.5 kgs
    Packing size 220*220*100mm



    Ordering Information:

    No. Model Product Name Features
    1 MT-APC-24DM 24-pole MT APC Ferrule Polishing Fixture Torque rated metal clamp fixing, non-destructive clamping
    2 MT-PC-24DM 24-pole MT UPC Ferrule Polishing Fixture Torque rated metal clamp fixing, non-destructive clamping
    3 miniMT-APC-24DM 24-pole mini MT APC Ferrule Polishing Fixture Torque-Rated Metal Press Block Fixed, Non-Destructive Clamping
    4 miniJMP-APC-24DM 24-pole mini Jumper APC Ferrule Polishing Fixture Torque Rated Metal Press Fixed, Non-Destructive Clamping
