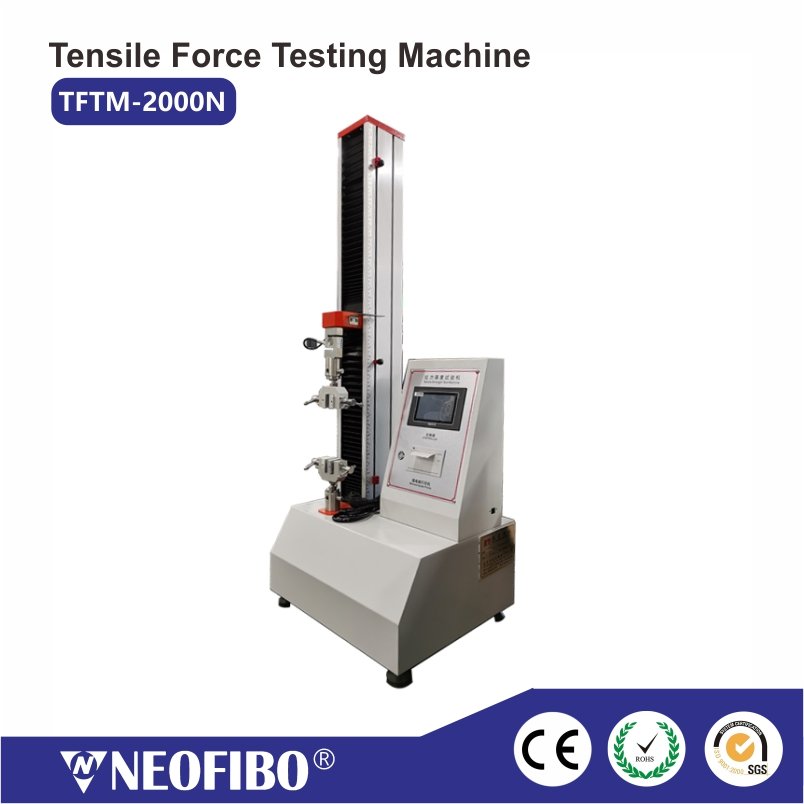

Tensile Force Testing Machine，TFTM-2000N
Product Description：
TFTM-2000N Tensile Force Testing Machine can be used to test the tensile strength, peel strength, tear strength, adhesive strength, and other resistance properties of various materials. It has a maximum tensile force of 2000N, can meet a variety of testing needs, has an accuracy of ±0.5%, and is suitable for tensile testing of materials such as optical fibers and cables. It can be equipped with various fixtures and elongation testing devices, or customised according to customer requirements.
Model：TFTM-2000N
Key Features:
- Motor controls up and down movement
- English and Chinese interface
- Desktop type and smart dimension
- Users can set the appropriate break down time according to different materials
- 12 months warranty from factory.
Specification:
| Model | TFTM-2000N |
| Capacity | 200KGF or 2000N |
| Accuracy | ±0.5 % |
| Test Speed | 50~300 mm/min |
| Moving Distance | 500 mm |
| Test Width | 150 mm |
| Connector | LC SC E2000 |
| Tensile Unit | Kg,lb,N |
| Display Mode | LCD English display, film touch key |
| Stopping Mode | Preset upper and lower points,detect breaking point |
| Report Output | Computer printing |
| Driving Source | Speed-Adjustable motor |
| Optional Items | Stripping, crimping |
| Net Weight | 60kg |
| Size | 450 x 500 x1200 mm |
Order Information:
| Model | Capacity | Test Width | Net Weight | Dimensions |
| TFTN-2000N | 200KGF or 2000N | 150 mm | 60kg | 450*500*1200 mm |
| TFTM-1000N | 100KGF or 1000N | 180mm | 12kg | 450*455*700mm |
