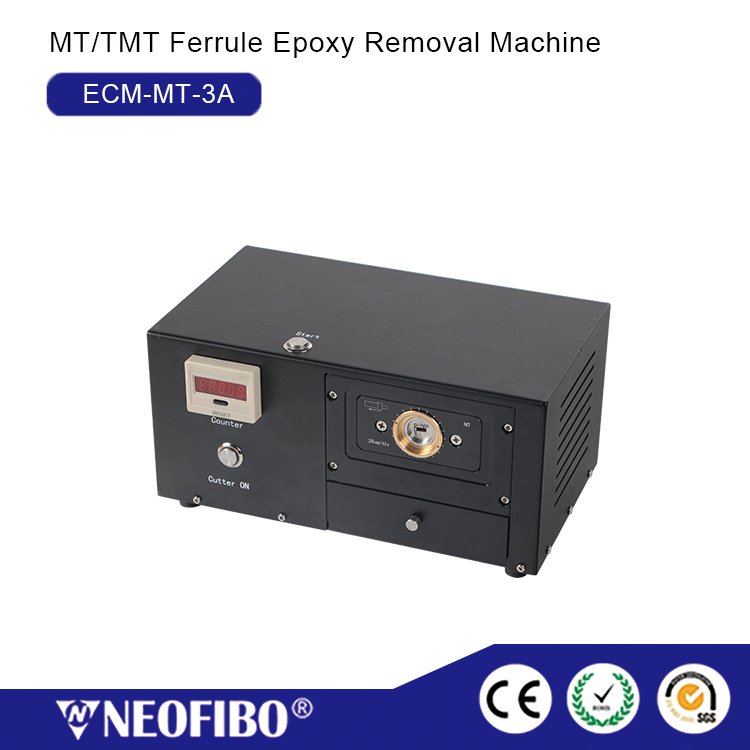

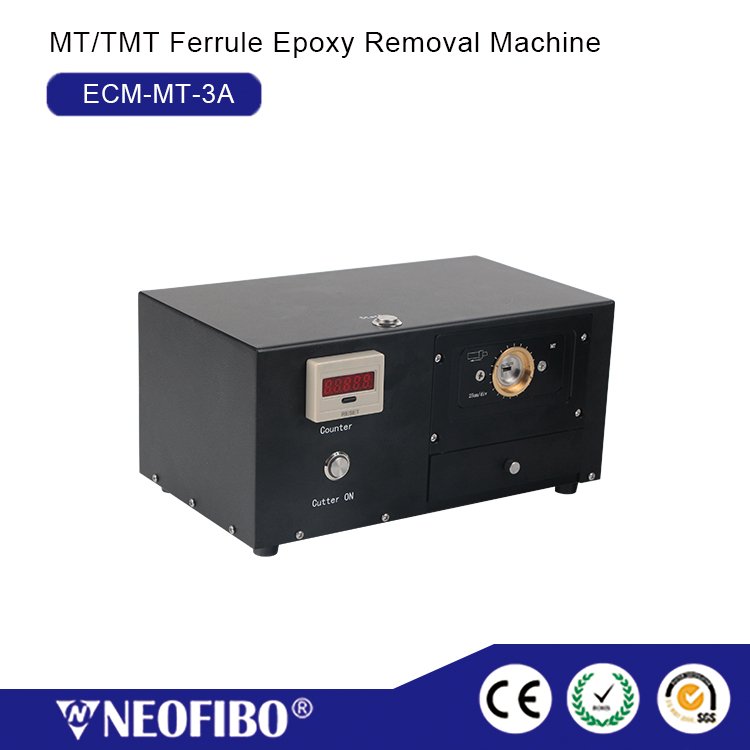

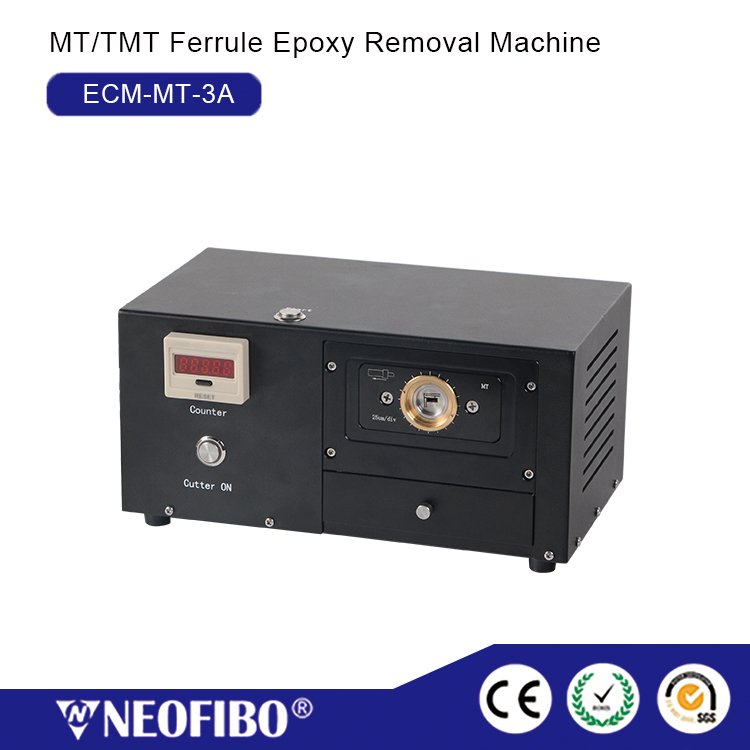

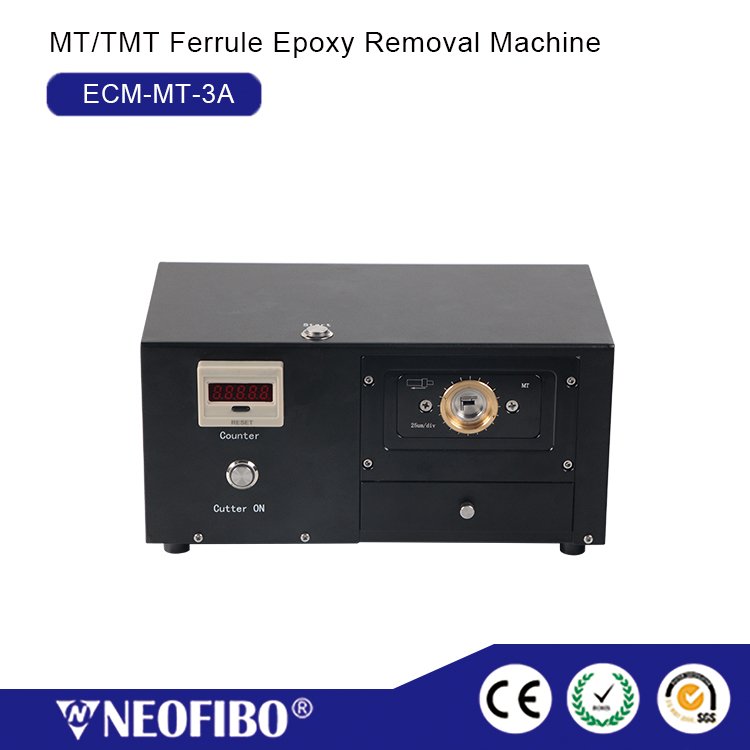

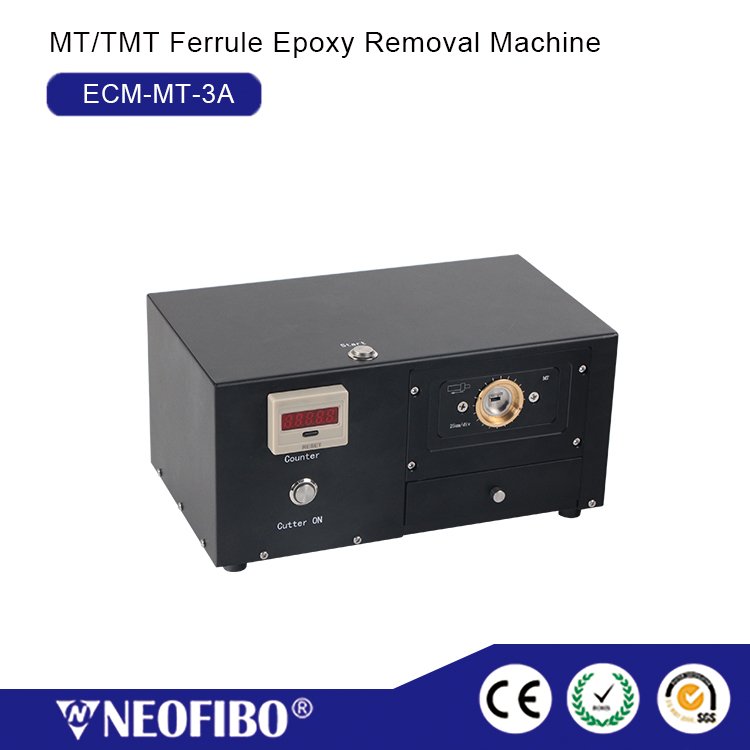

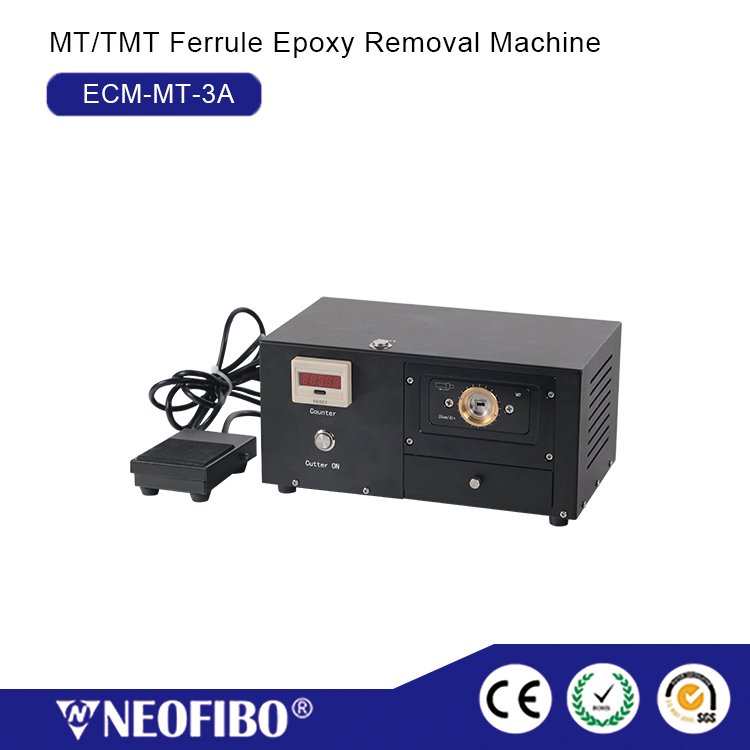

MT/TMT Ferrule Epoxy Removal Machine ECM-MT-3A
Model: ECM-MT-3A
Origin: China
Brand: Neofibo
Production Description:
ECM-MT-3A ferrule epoxy removal machine uses a motor-driven grinding wheel blade to remove exposed fibers and epoxy resin from MT, TMT PC/APC end-faces. It levels the end-face height to facilitate subsequent clamping and grinding, improving efficiency and ensuring consistent product specifications.
Featuring simple structure and easy operation, the machine is equipped with a waste fiber storage box. The upgraded version supports speed adjustment. Cutting speed can be adjusted according to fiber material, epoxy characteristics and processing requirements, adapting to diverse production conditions and enabling precise machining.
Key Features：
- Designed to remove excess fiber and epoxy head of MT, TMT ferrules;
- Plug-in glue removal mode, one cutting finished in 3 seconds, easy operation;
- Thorough epoxy removal without fiber damage;
- Customizable for various ferrule types;
- Automatic cutting with speed regulation function;
- Equipped with waste fiber box for debris-free operation;
- Display cutting times and rotating speed;
- Replaceable cutting blade.

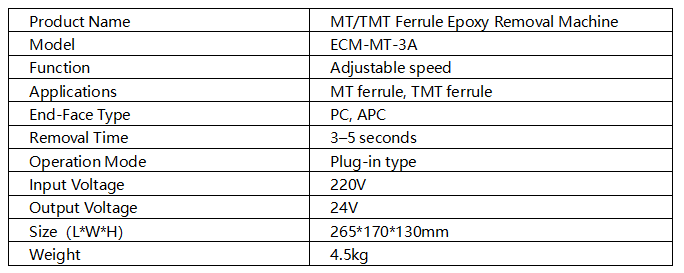

Specifications：

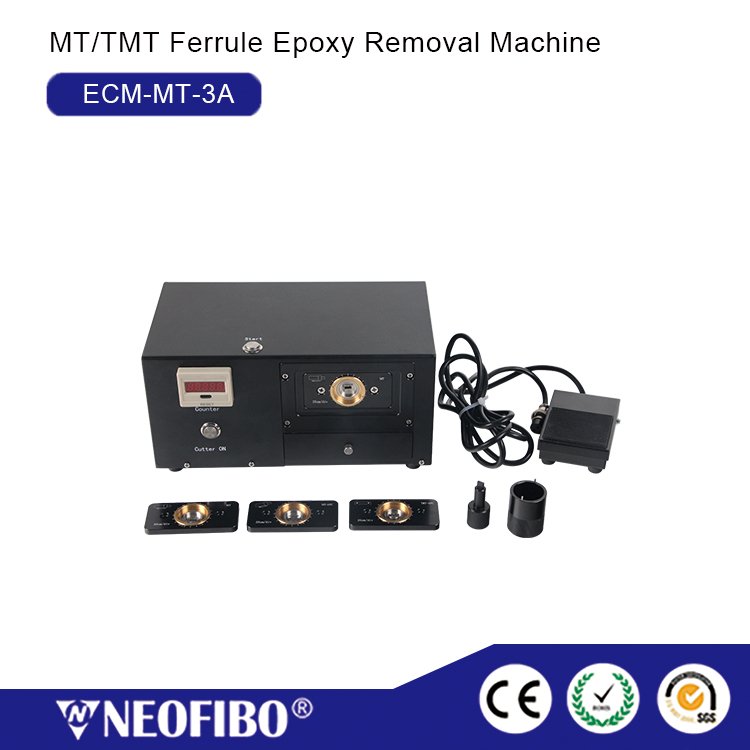

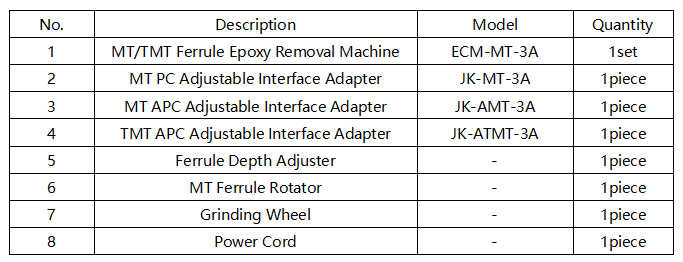

Equipment List：
