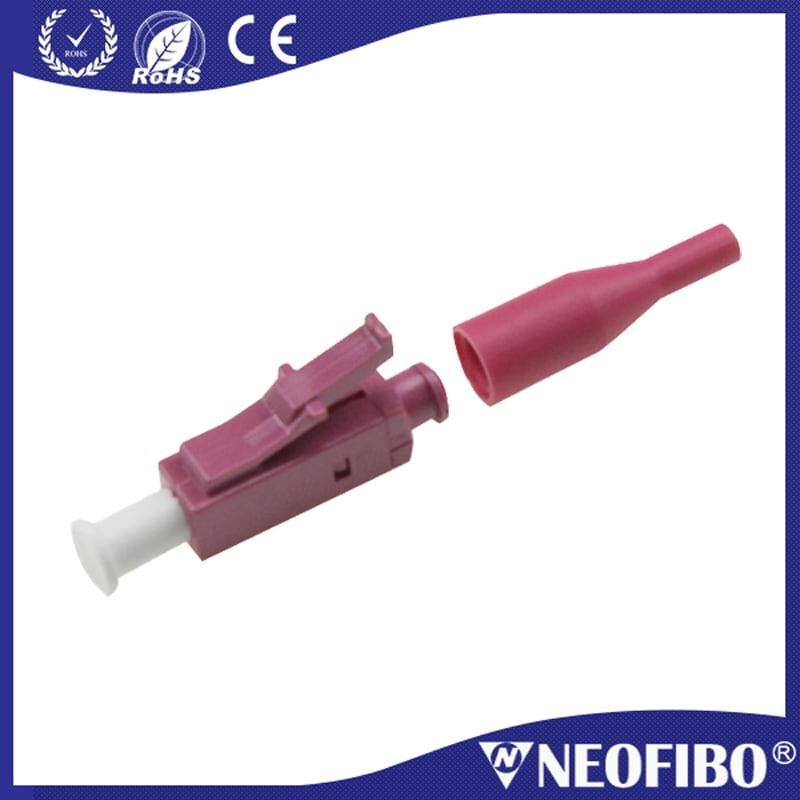

lc upc connector_LC UPC Magenta ceramic ferrule multi mode simplex 0.9mm fiber optic connector
lc upc OM4 0.9 connector
LC/UPC/MM/SX OM4 Connector:
0.9mm Boot:
Key Features:
Low insertion loss and back reflection loss;
Ferrule end surface predomed;
Precision anti-rotation key and corrosion resistant body;
UL-rated plastic housing;
Boots in a variety of colors;
Telcordia style boots;
Free-floating ceramic ferrule
Applications:
CATV
Active device termination
Telecommunication networks
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
Availability:
The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Clips are available for duplex connectors.
Housing kits without ferrule are available.
Parameters of lc upc connector
| Paramter | Singlemode(PC) | Singlemode(APC) | Multimode (PC) |
| Insertion loss | ≤0.2 dB | ≤0.2dB | ≤0.2dB |
| Return Loss | ≥50 dB | ≥65 dB | ≥35 dB |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ |
Order information:

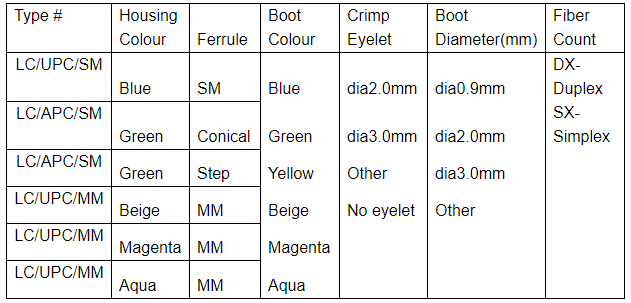

LC series connecter order information:
We are based in Guangdong, China, start from 2008,sell to North America(35.00%),Eastern Europe(20.00%),Southeast
Asia(15.00%),South America(10.00%),Oceania(5.00%),Africa(4.00%),Mid East(3.00%),Northern Europe(3.00%),Southern
Europe(3.00%),Western Europe(2.00%). There are total about 11-50 people in our office.
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Fiber Optic Polishing Machines And Patch Cord Manufacturing Machines,Fiber Optic Polishing Fixtures And Polishing Films And
Consumables,Fiber Optic Connectors,Fiber Optic Cables And Patch CordsFiber Optic Tools And Cleaning Consumables4. why should you buy from us not from other suppliers?
MPO/MTP polishing solutions Fiber optic polishing machines Fiber optic polishing jigs & consumables Fiber patch cord manufacturing
machines Fiber optic connectors Fiber optic cables & patch cords Fiber tools & toolkit Fiber cleaning consumables5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
