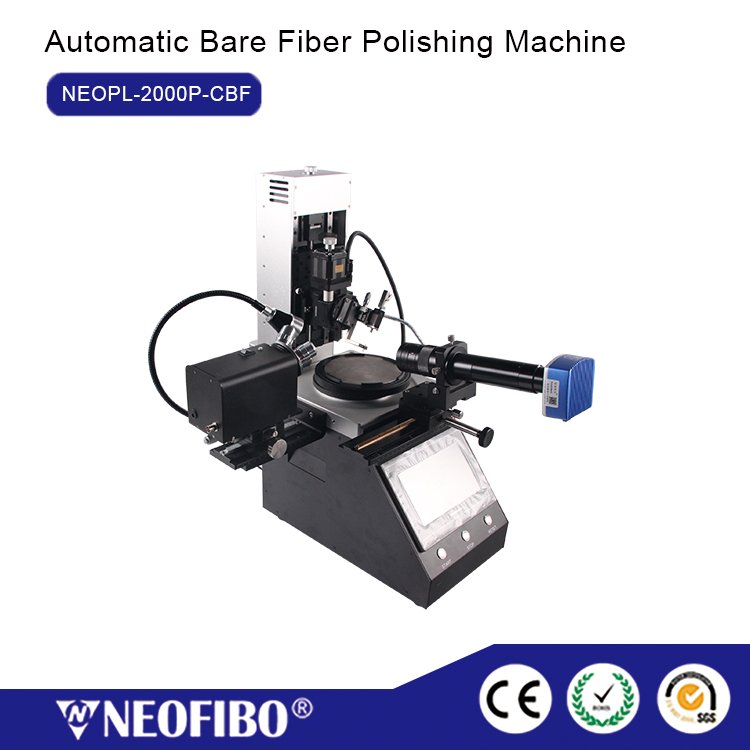

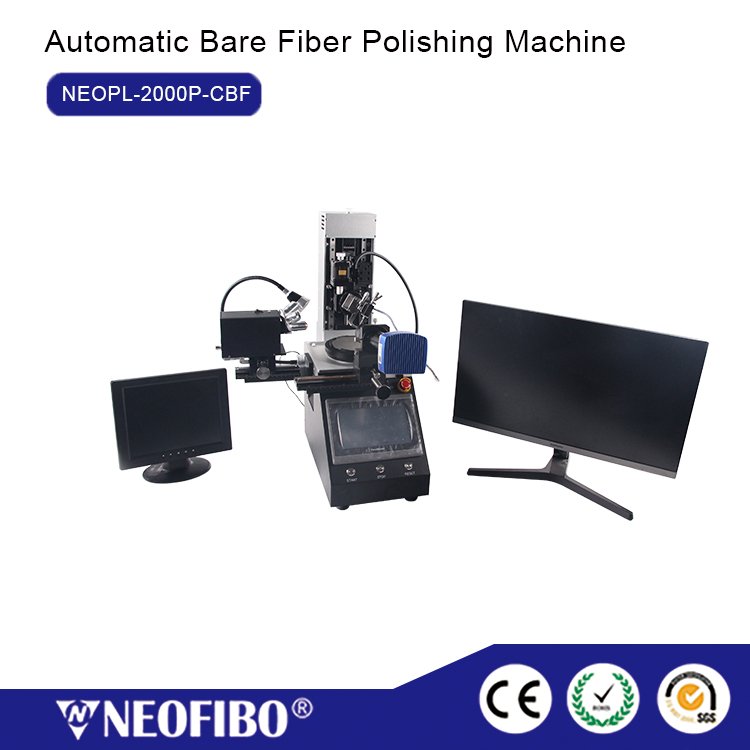

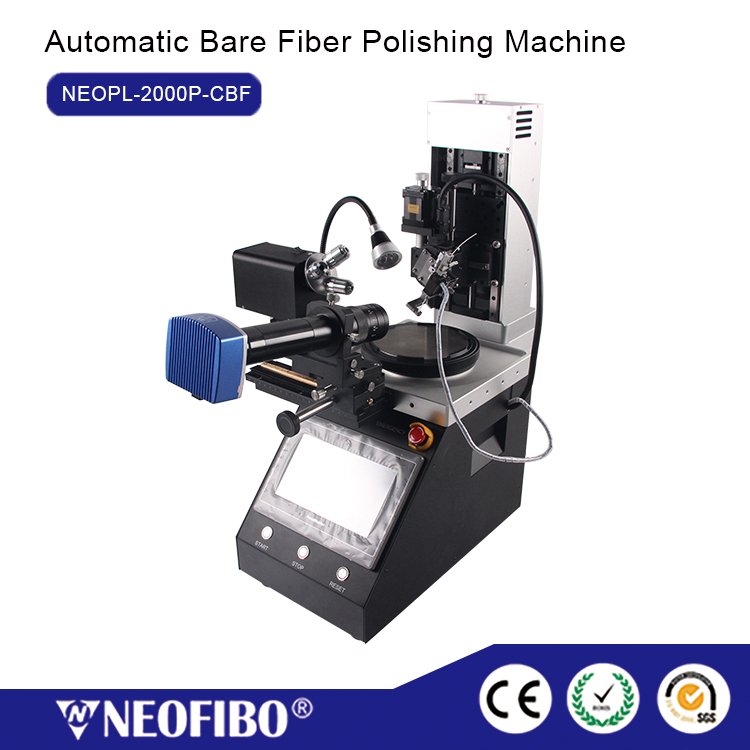

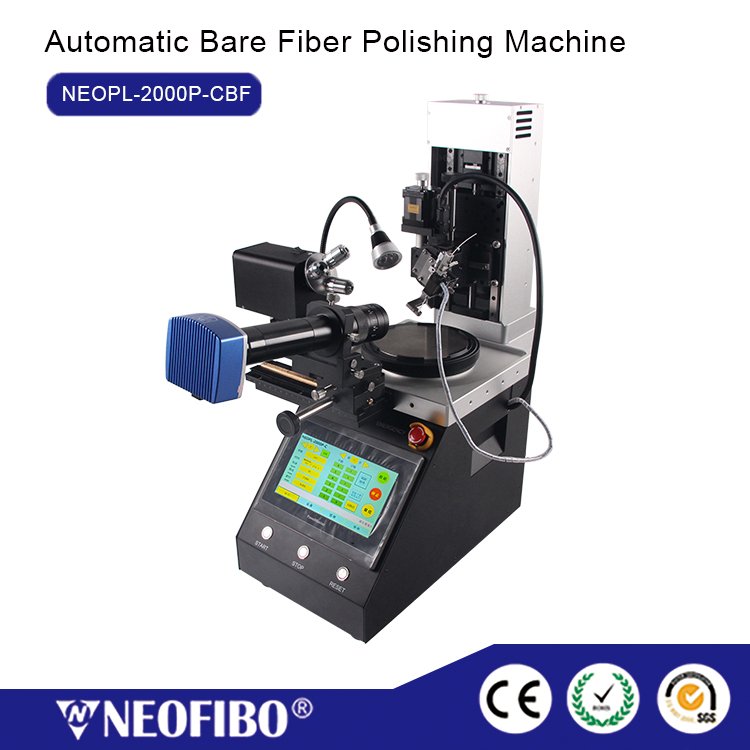

Automatic Bare Fiber Polishing Machine，NEOPL-2000P-CBF

Automatic Bare Fiber Polishing Machine，NEOPL-2000P-CBF

Model: NEOPL-2000P-CBF

Origin: China

Brand: Neofibo

Production Description:

NEOPL-2000P-CBF automatic bare fiber polishing machine, this polishing equipment combines the functions of Neofibo programmable polisher 2000P and 1800 series bare fiber polisher into one, the equipment is equipped with motorized rotary indexing circle, the polishing angle can be automatically adjusted; 20 groups of polishing process can be stored, the operator can also be operated without polishing experience; equipped with a CCD camera and 24-storage display, real-time monitoring of the polishing status; equipment installed with a three times magnification system, end-face inspection online after polishing; built-in software and PLC control system to control the amount of fiber polishing; bare fiber adapter interface, clamping different diameters of fiber. The device is equipped with a triple amplification system, which can be used to check the end-face online after polishing; built-in software and PLC control system can control the amount of optical fiber polishing and cutting; the bare fiber adapter interface can be used to clamp optical fibers of different diameters. This equipment can be used for bare fiber PC-type, APC-type, cone-type and wedge-type end-face polishing, suitable for communication devices, special optical fibers, medical fibers, energy fibers, wave-guide chips and other products polishing.

Key Features:

Designed for bare fiber polishing, bare fiber without wax sealing and epoxy filling;
Supports PC, APC, wedge and tapered fiber polishing;
Tapered fiber polishing tilt angle 15-90° adjustable;
Beveled fiber polishing tilt angle of 0-60 ° adjustable;
Real-time monitoring of the bare fiber front end and turntable spacing, as well as the fiber profile;
Lifting and pressing, up and down displacement repeatability control 0.005mm;
Speed, pressure and timing digital management;
With measuring software, can scribe the end face, length and angle;
Polishing different diameters of bare fiber, fiber diameter from Φ80um to Φ2000um;
Customized different size clamping adapters for different diameter fiber products;
Adding external LED light source;
Add fiber clamping rotation mechanism.
