Neofibo NEOPL-1200D easy smart fiber polishing machine
NEOPL-1200D Smart Polisher
Product Description：NEOPL-1200D Smart Polisher is a micro-segmented head quantitative pressurized polishing machine. The polishing fixtures are quick and easy to change, and the polishing pressure, time and speed parameters are customizable, with the parameter setting buttons centrally located on the control panel. The operating panel is set at a 45-degree angle to the horizontal, making it easy to operate from a standing position.
Product Features:
1. CE certified product from Neofibo;
2. Quantitative pressurization of micro-segmentation head;
3. Dual motor drive, 3075B;
4. Polishing pad and polishing film diameter 127mm;
5. Can polish 12-24 connectors;
6. Suitable for various connectors UPC/APC end face polishing;
7. Low-cost polishing fixture, can polish the ferrules and connectors;
8. Standard and non-standard connector polishing equipment.
1. CE certified product from Neofibo;
2. Quantitative pressurization of micro-segmentation head;
3. Dual motor drive, 3075B;
4. Polishing pad and polishing film diameter 127mm;
5. Can polish 12-24 connectors;
6. Suitable for various connectors UPC/APC end face polishing;
7. Low-cost polishing fixture, can polish the ferrules and connectors;
8. Standard and non-standard connector polishing equipment.
Technical parameters：|
Model
|
NEOPL-1200D
|
|
Power source
|
Micro head quantitative pressurization
|
|
Number of polishing cores
|
12-24
|
|
Inner diameter of turntable
|
127mm
|
|
Voltage
|
220VAC.50/60Hz
|
|
Size of polishing rubber pad and film
|
127mm
|
|
Application
|
Standard and non-standard connector
|
|
Suitable for connectors
|
SC，FC，ST，E2000，MU，LC
|
|
Machine size
|
39*35*47.5cm
|
|
Net weight
|
28kg
|
Standard configuration：
|
No.
|
Description
|
Quantity
|
Unit
|
|
1
|
Polishing Machine
|
1
|
Set
|
|
2
|
Power cable (220V)
|
1
|
Piece
|
|
3
|
Cable holder
|
1
|
Piece
|
|
4
|
Operating manuals
|
1
|
piece
|

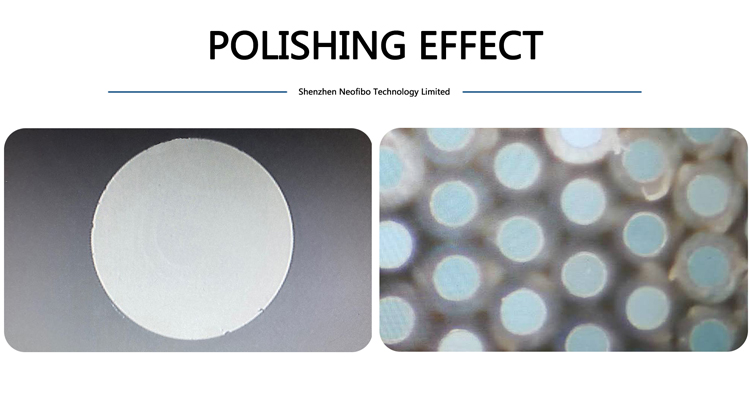

Polishing Effect

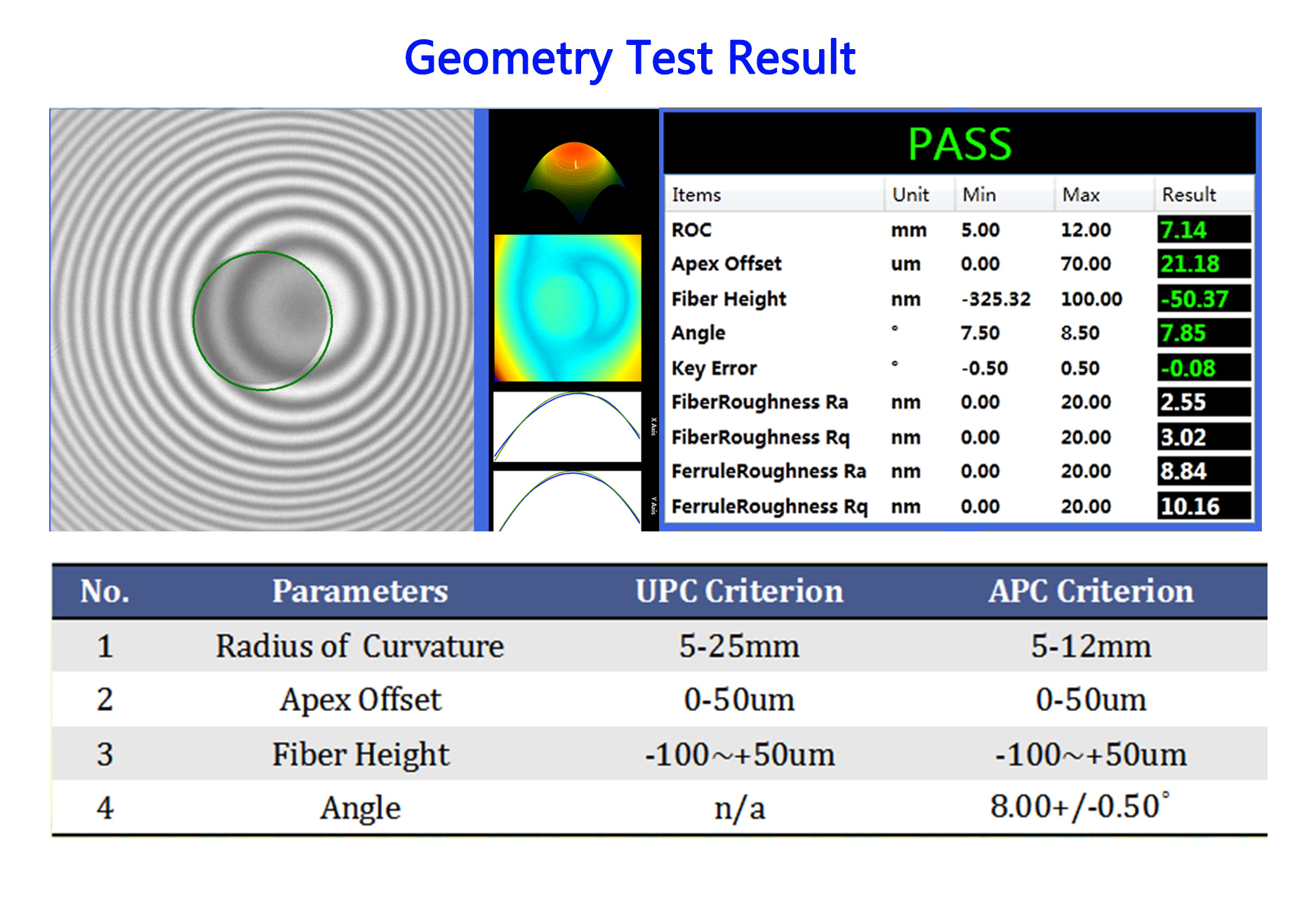

Geometry Test Result:
|
NO.
|
Parameters
|
UPC Criterion
|
APC Criterion
|
|
1
|
Radius of Curvature
|
5-25mm
|
5-12mm
|
|
2
|
Apex Offset
|
0-50μm
|
0-50μm
|
|
3
|
Fiber Height
|
-100~+50μm
|
-100~+50μm
|
|
4
|
Angle
|
n/a
|
8.00+/-0.50°
|
ILRL Test Result:
|
Connector Type
|
SM/UPC
|
SM/APC
|
MM/UPC
|
|
Insertion Loss
|
≤0.30dB
|
≤0.30dB
|
≤0.50dB
|
|
Return loss
|
≥55dB
|
≥60dB
|
≥30dB
|
If you are patch cord manufacturer,your criterion could be stricter than the list above.
End-face Quality:
|
Polishing Process
|
4 Process
|
|
Return Loss
|
≥50dB
|
|
Top Curvatrue
|
10~25mm
|
|
Top Excursion
|
≤50μm
|
|
Core Hollow
|
≤0.1μm
|
|
Surface Roughness
|
≤50nm
|
1.What does NEOFIBO offer?
We offer full range of quality and comprehensive fiber optic products, including Patchcord Production Machine, polishing jigs, as Seikoh Giken, Senko, Domaille or customized ones; Polishing Consumables, Tools, Cleanings, Tool Kits, Testing Equipment, SpliceItems. We commit to offer you Attractive Price, Excellent Quality and Fast Delivery!
We offer full range of quality and comprehensive fiber optic products, including Patchcord Production Machine, polishing jigs, as Seikoh Giken, Senko, Domaille or customized ones; Polishing Consumables, Tools, Cleanings, Tool Kits, Testing Equipment, SpliceItems. We commit to offer you Attractive Price, Excellent Quality and Fast Delivery!
2.What will be the delivery cost?
All price listed are FOB Shenzhen. Your nominated courier is acceptable. Otherwise, we will use FEDEX, DHL, UPS or any other forwarder per confirmation and charge accordingly.
All price listed are FOB Shenzhen. Your nominated courier is acceptable. Otherwise, we will use FEDEX, DHL, UPS or any other forwarder per confirmation and charge accordingly.
3.How the goods will be delivered?
For normal stock items, they will be dispatched within 1-2 business days after payment confirmation. However, for items out of stock, estimated leadtime will be 3-10 working days.
For normal stock items, they will be dispatched within 1-2 business days after payment confirmation. However, for items out of stock, estimated leadtime will be 3-10 working days.
4.How can I order the goods?
NEOIFBO are pleased to offer our valuable customers three ordering channels, ie., Online Ordering, Fax Order Form and Issuing Formal Purchasing Order by mail.
NEOIFBO are pleased to offer our valuable customers three ordering channels, ie., Online Ordering, Fax Order Form and Issuing Formal Purchasing Order by mail.
5.How is the warranty for NEOFIBO product?
All products are warranted by NEOFIBO (consumables, normal tear and wear excluded) for one year after date of purchase. Any part defected in material or workmanship and returned to NEOFIBO, as NEOFIBO designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced, at NEOFIBO’s option.
