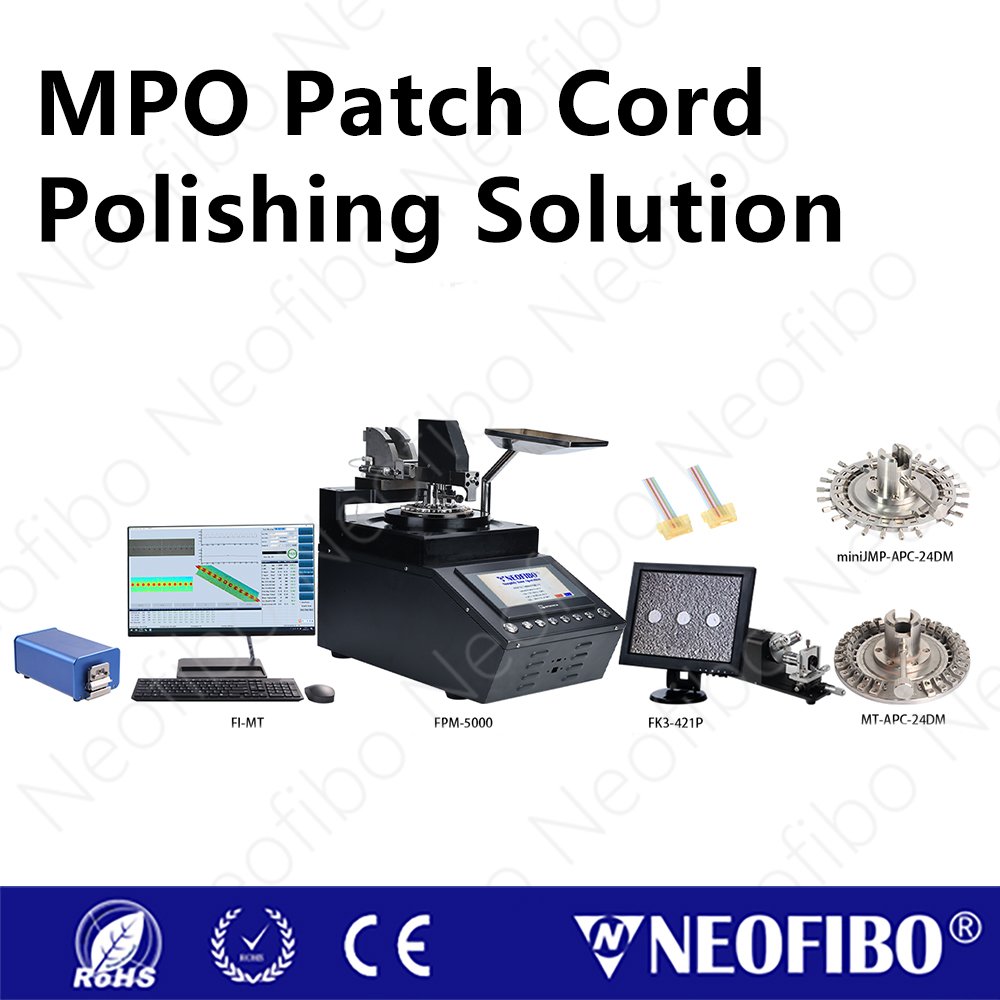

MPO Patch Cord Polishing Solution
Solution 1: Pneumatic polishing machine for MT ferrule polishing
Solution Description:
- Pneumatic center pressure polishing of MT, mini MT, mini JUMPER、TMT ferrules; quantitative
control of polishing pressure, time and speed; equipped with 24-position MT ferrules fixture;
- 100% verification test, with a variety of polishing fixtures to be chosen; Ergonomic design, right
button to start and left button to stop; Automatic switch to the next polishing step at the end
of the previous polishing step; Easy operation, suitable for mass production and rework polishing;
- Recommended to use 24-channel ILRL machine and MPO interferometer; equipped with MPO
end-face cleaning machine, clean thoroughly without hurting the end-face; optional multi-core
automatic determination of end-face inspection instrument.
Solution 2: Precision MT polishing machine for MT ferrule
Solution Advantages:
> Automatic lifting and pressure quantification control for MT ferrule polishing pressure;
> Dual-mode selectable: pressure priority or displacement priority;
> Capable of polishing 24 to 42 MT ferules at a time, delivering high polishing efficiency;
> Pressure sensing capability enables quantitative polishing pressure settings;
> Pressure control accuracy: 0.01kgf, repeatability: 0.001mm;
> Effectively ensures consistency in MT ferrule polishing length and angle;
> Quantified grinding height accuracy to 0.005mm;
> User-friendly interface with customizable polishing parameters;
> Suitable for polishing MT ferrules with fiber heights down to -4000nm.
What we offer:
*Configure the production line according to your budget.
*Equipment test report and operation guide can be provided.
*Customized polishing fixtures according to your standards.
*Have excellent solution of bare fiber polishing and MPO patch cord polishing.
