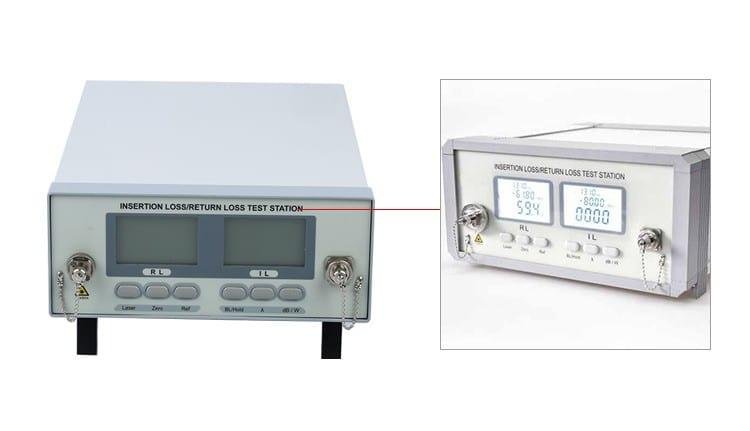

ILRL-7420 Insertion Loss Tester For Patchcord Test


Contact Us

    test station;
    ) High quality mental case insures the good environmental stability.
    2) OLED screen makes the display more clear,high contrast and non-streaking or no tails
    3) It integrates the MM and SM in one unit, greatly save the cost and improve test speed.

    High measurement accuracy Insertion Loss& Return tester for Patchcord

    Insertion Loss Tester,Insertion Loss Tester ,Insertion Loss Tester

    Insertion Loss Tester For Patchcord TestInsertion Loss Tester For Patchcord TestFeatures:

    1.High measurement accuracy

    2.Synchronously auto-setting wavelength
    3.Multiple working modes
    4.Universal optical connector, easy cleaning
    5.Human Engineering Design, easy Operation

    1. test  fiber cables
    2. test fiber optical active & passive components
    3.It is essential and ideal tool for the test, research, development, construction and maintenance
    4.Convinent for research institutions and network service providers and carriers

    1.Wavelength 850nm
    2. Test Connector FC/APC
    3. measurement Range 0 ~ 75dB
    4.RCalibrated wavelength 850nm
    5.Output Stability of laser source 0.05dB(1 hour@250C)
    6.Measurement accuracy 0.25dB
    8.Wavelength Range 800~1700nm
    9.ICalibrated wavelength 850/1300/1310/1550nm
    10. adaptors Interchangeable FC/SC/ST, Universal 2.5mm /1.25mm adaptors
    11.Photo detector InGaAs
    12.t Measurement range +3 ~ -80 dBm
    13. Resolution Non-linear 0.01dB ;Linear:0.001nw/µW/mW
    15.Power Supply AC 170-260V
    16.Operation Temperature -5℃~+40℃
    17.Size L 260mm *W 265mm* H140mm
    18.Total Weight 3.0 Kg

    1.What does NEOFIBO offer?

    We offer full range of quality and comprehensive fiber optic products, including Patchcord Production Machine, polishing jigs, as Seikoh Giken, Senko, Domaille or customized ones; Polishing Consumables, Tools, Cleanings, Tool Kits, Testing Equipment, Splice Items. We commit to offer you Attractive Price, Excellent Quality and Fast Delivery!

    2.What will be the delivery cost?

    All price listed are FOB Shenzhen. Your nominated courier is acceptable. Otherwise, we will use FEDEX, DHL, UPS or any other forwarder per confirmation and charge accordingly.

    3.How the goods will be delivered?

    For normal stock items, they will be dispatched within 1-2 business days after payment confirmation. However, for items out of stock, estimated leadtime will be 3-10 working days.

    4.How can I order the goods?

    NEOIFBO are pleased to offer our valuable customers three ordering channels, ie., Online Ordering, Fax Order Form and Issuing Formal Purchasing Order by mail.

    5.How is the warranty for NEOFIBO product?

    All products are warranted by NEOFIBO (consumables, normal tear and wear excluded) for one year after date of purchase. Any part defected in material or workmanship and returned to NEOFIBO, as NEOFIBO designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced, at NEOFIBO’s option.

    FOB Price:

    US $1,259.8 – 1,385.8 / Set

    Min.Order Quantity:

    1 Set/Sets

    Supply Ability:

    500 Set/Sets per Month



    Payment Terms:

    T/T,Western Union,MoneyGram,PayPal,Escrow, Visa

    Place of Origin

    Shanghai, China (Mainland)

    Brand Name


    Model Number


    Return Loss Test Wavelength


    Return Loss Test Connector


    Return Loss measurement Range

    0 ~ 75dB

    Return Loss Test Calibrated wavelength


    Return Loss Test Measurement accuracy


    Return Loss Test Resolution


    Insertion Loss Test Wavelength Range



    Iron 40%+ plastic 60%

    Output Stability of laser source

    0.05dB(1 hour@250C)

    Insertion Loss Test adaptors

    Interchangeable FC/SC/ST, Universal 2.5mm /1.25mm adaptors
