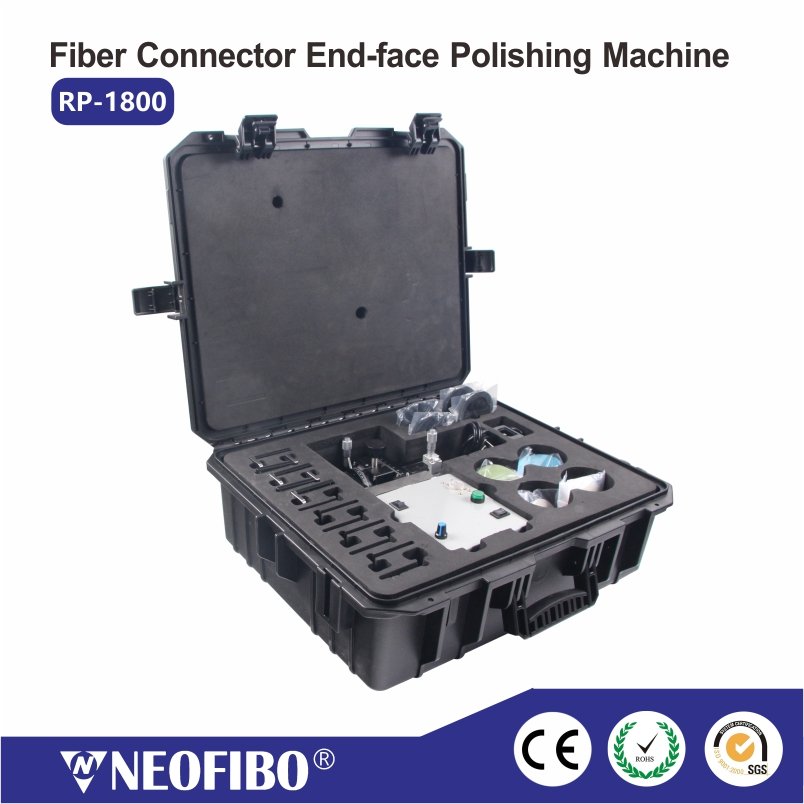

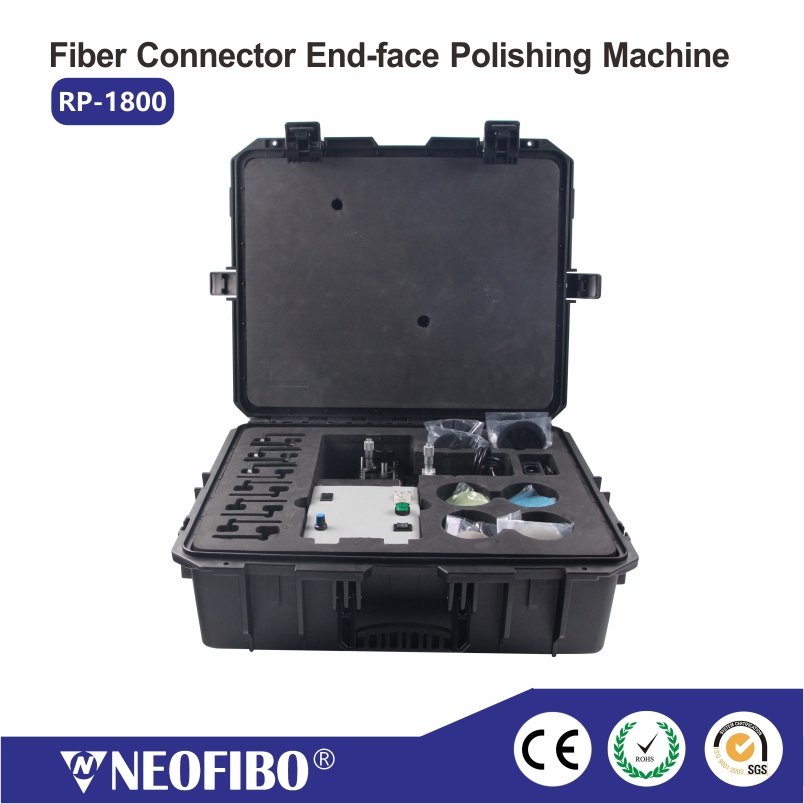

Fiber Connector End-face Polishing Machine，RP-1800

Fiber Connector End-face Polishing Machine，RP-1800

Product Description:

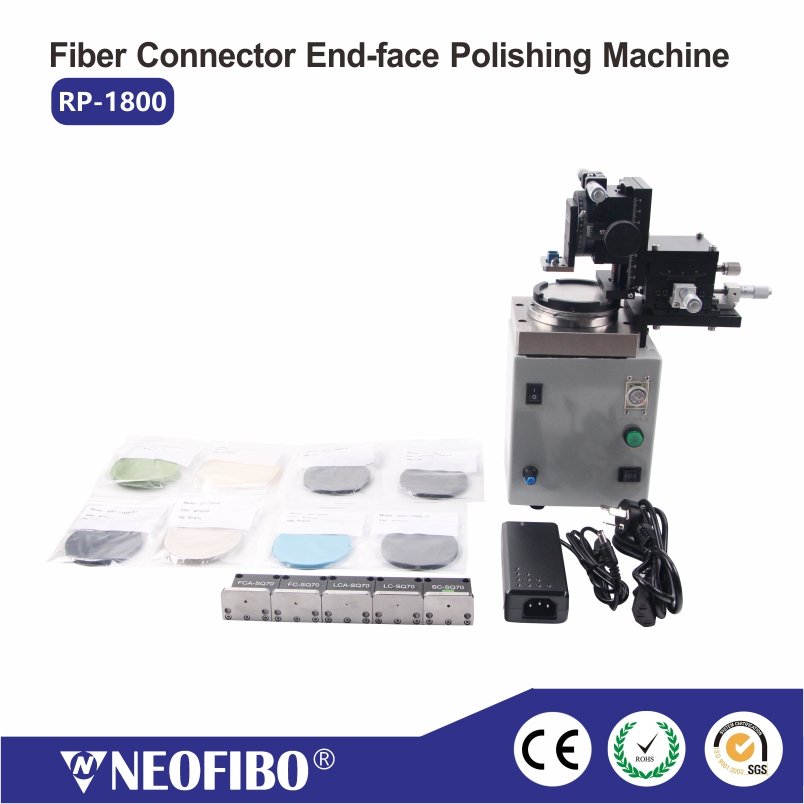

RP-1800 Fiber connector end-face polishing machine is specially designed for small batch fiber optic connector grinding/repairing, which can grind into PC end-face, APC end-face and conical end-face. The equipment is equipped with indexing circle and three-dimensional adjustment frame, fiber polishing angle 0-60 degrees adjustable. External micrometer, can adjust the length of fiber extension and grinding pressure. Quick release bare fiber adapter interface, clamping different diameter optical fiber. Suitable for communication device special fiber, medical fiber, energy fiber grinding.

Model：RP-1800

Place of Origin: Shenzhen, China

Key Features:

• Designed specifically for small batch fiber optic connector grinding/repairing, with different adapters for different categories of connectors;
• Supports PC face and APC end-face grinding;
• PolishAPC bare fiber end face with adjustable tilt angle from 0 to 60 degrees;
• High-definition magnifying glass, real-time monitoring of the grinding status and appearance;
• Suitable for fiber optic application R&D units and university laboratories;
• Can also customize the grinding jig according to different fiber optic products;
• Common applications include fiber optic arrays, optical waveguide devices, optical chips and collimator components;
• Equipped with an optional tapered fiber optic grinding fixture, which can be used to grind the tapered end faces of bare fibers.

Specifications：

standard configuration：
