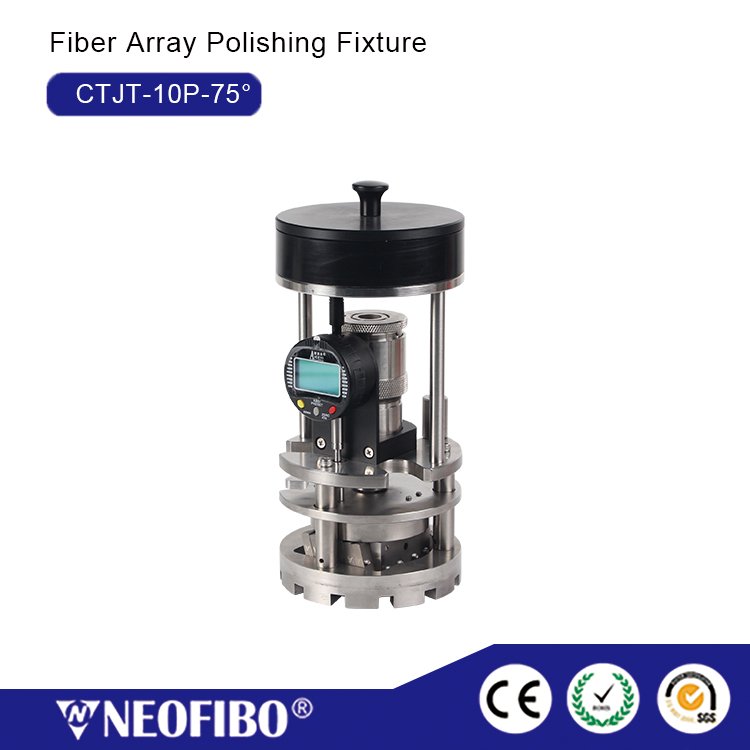

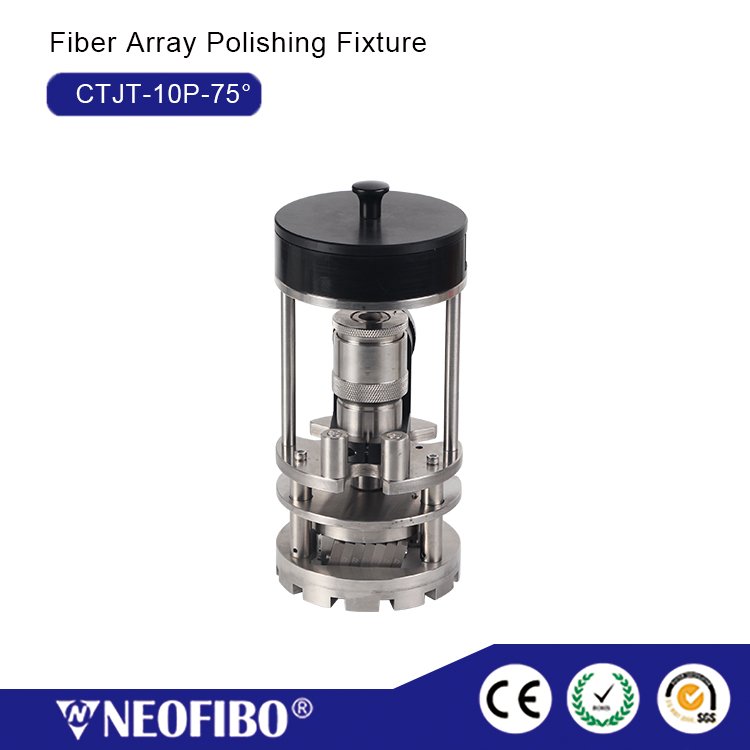

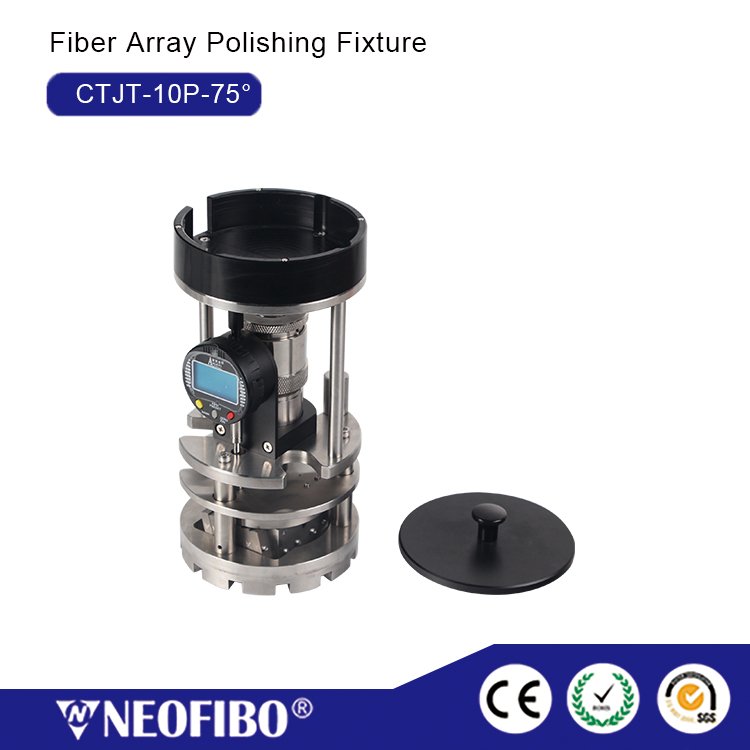

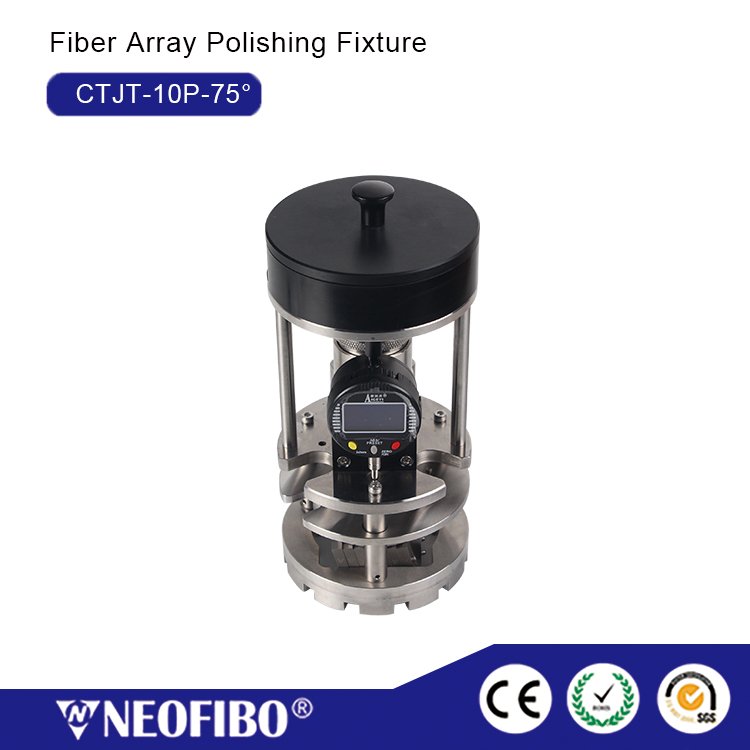

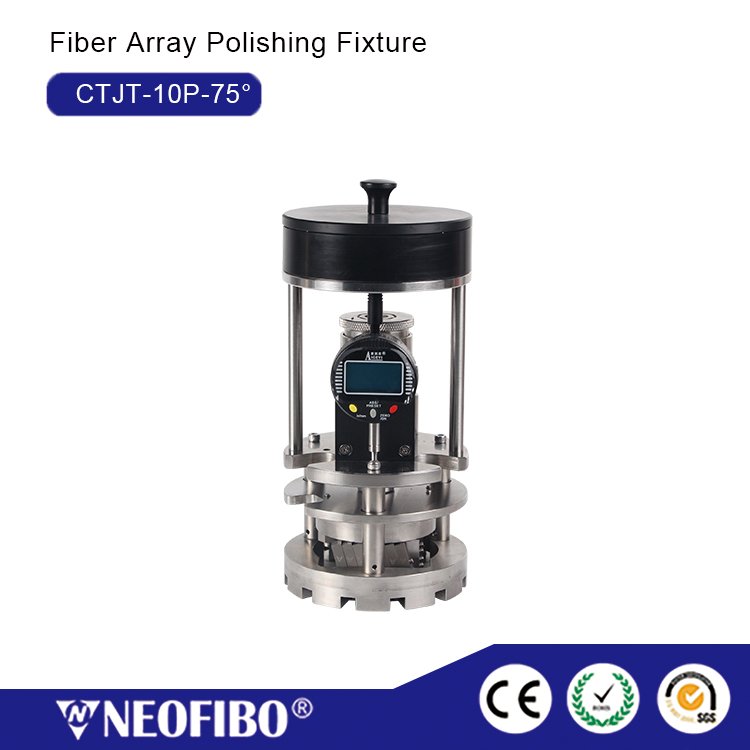

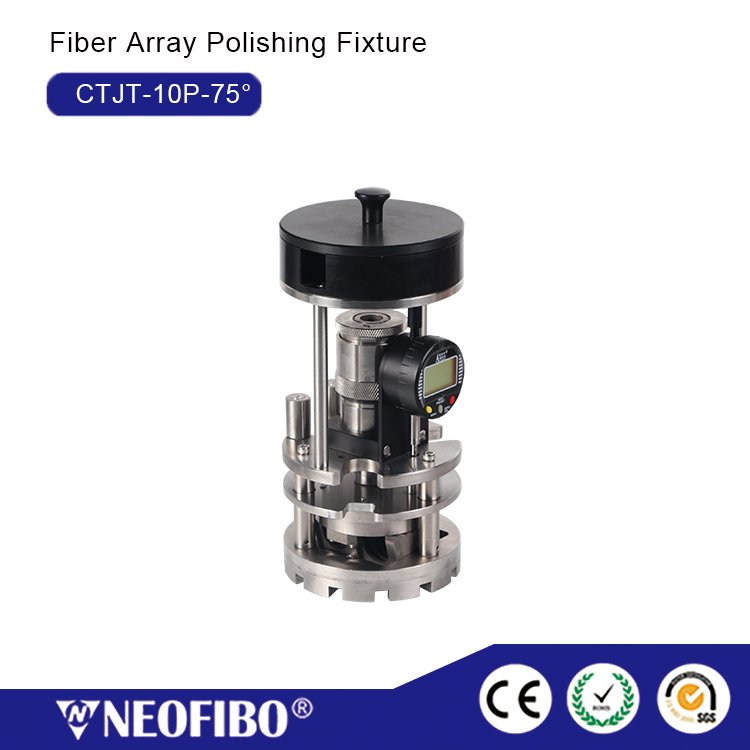

Fiber Array Polishing Fixture，CTJT-10P-75°
Model: CTJT-10P-75°
Origin: China
Brand: Neofibo
Production Description:
CTJT-10P-75° is a dedicated polishing fixture for 75° long-strip FA components. It adopts a blade locking clamping method and can hold 10 to 14 work-pieces in a single clamping for efficient batch processing. Featuring a two-step polishing process, the equipment ensures intact fiber end faces and effectively reduces chipping defects on glass crystal edges, delivering superior polishing quality and high yield rate. Equipped with a built-in micrometer height gauge for real-time grinding depth monitoring and an adjustable elastic pressure knob, it supports precise pressure regulation to meet diverse process requirements and achieve high-precision controllable polishing.
Key Features：
- Holds 10–14 long-strip FA fiber assemblies at a time;
- Two-step polishing process ensures intact fiber end-faces;
- Minimal chipping defects at the glass-crystal interface;
- High-quality polishing results with a high success rate;
- Built-in micrometer effectively monitors polishing depth;
- Built-in tension/pressure adjustment knob ensures adjustable polishing pressure.
Specifications：
