FA Polarization Maintaining Fiber Alignment System，PMF-421P-FA8CH
Model: PMF-421P-FA8CH
Origin: China
Brand: Neofibo
Production Description:

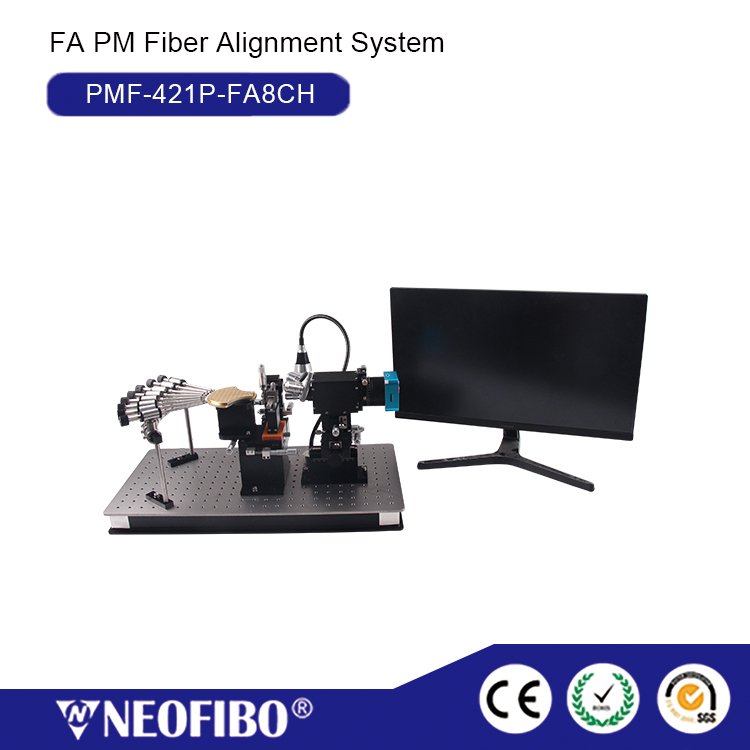

PMF-421P-FA8CH PM fiber optic alignment system is designed by Shenzhen Neofibo Technology Limited, which is specially designed for alignment of 8-channel FA fiber optic arrays, with high-definition camera and internal/external light source to ensure clear imaging of the fiber optic end-face, ensuring accurate panda’s eye alignment, efficient dispensing or replenishment operation, and finally completing the UV curing. Customized horizontal and vertical grid lines ensure that the angular deviation after alignment is much less than ±3 degrees.
Key Feature:
- Dedicated to FA 8-channel fiber optic array alignment, efficient alignment;
- UV curing FA fiber optic arrays to protect FA ferrules;
- Each channel has an independent rotator, anti-interference ability;

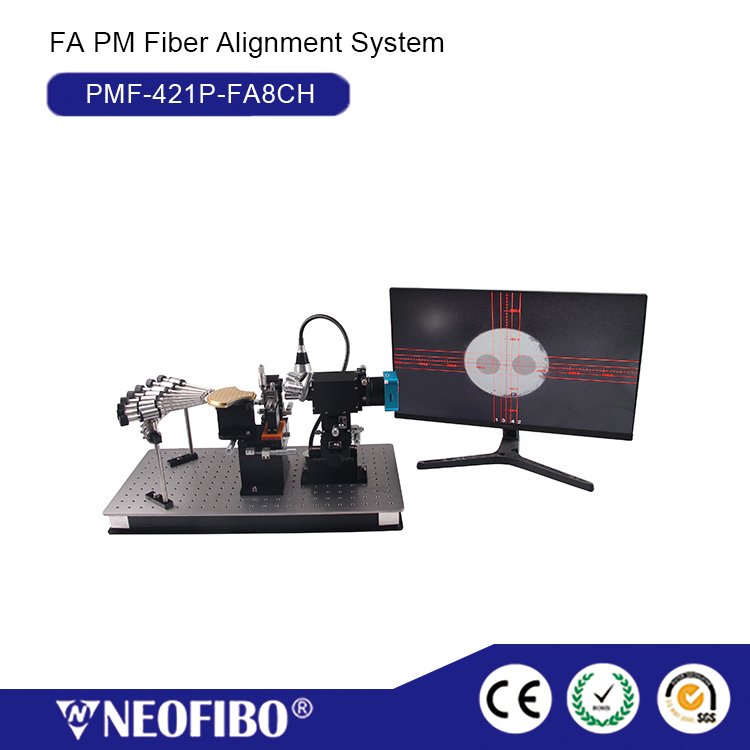

- HD camera imaging 100-800 times magnification, effective control of the alignment angle is less than ± 3 degrees;
- Multiple horizontal and vertical grid lines to ensure fast and slow axis consistency;
- Three-axis adjustment frame precision control, fine-tuning accuracy of ± 0.01mm;
- Internal and external light source to ensure clear end-face imaging of the PM fiber;
- 600x500mm optical platform is convenient for system expansion;
- After the catenary alignment is completed, the fiber can be heated and cured directly in the fiber ferrule or capillary tube;
- Spindle adjustment angle 0~360 degrees.

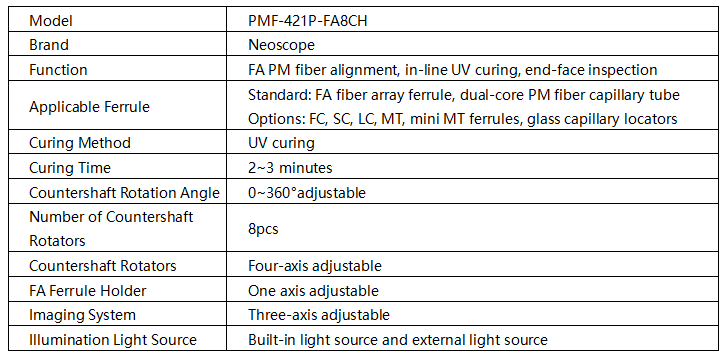

Specification：

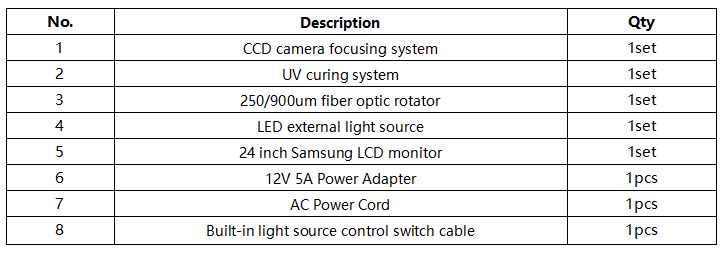

Standard Configuration:
