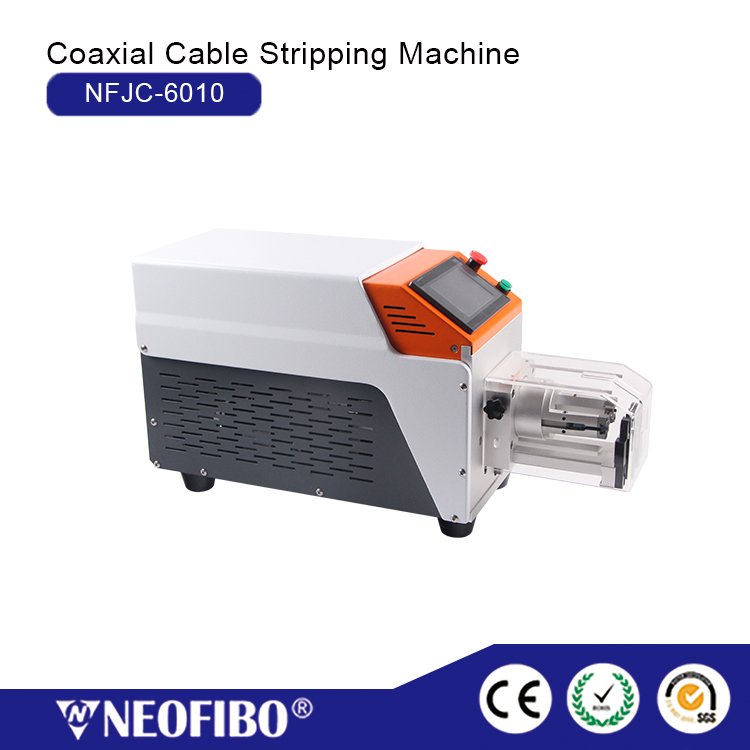

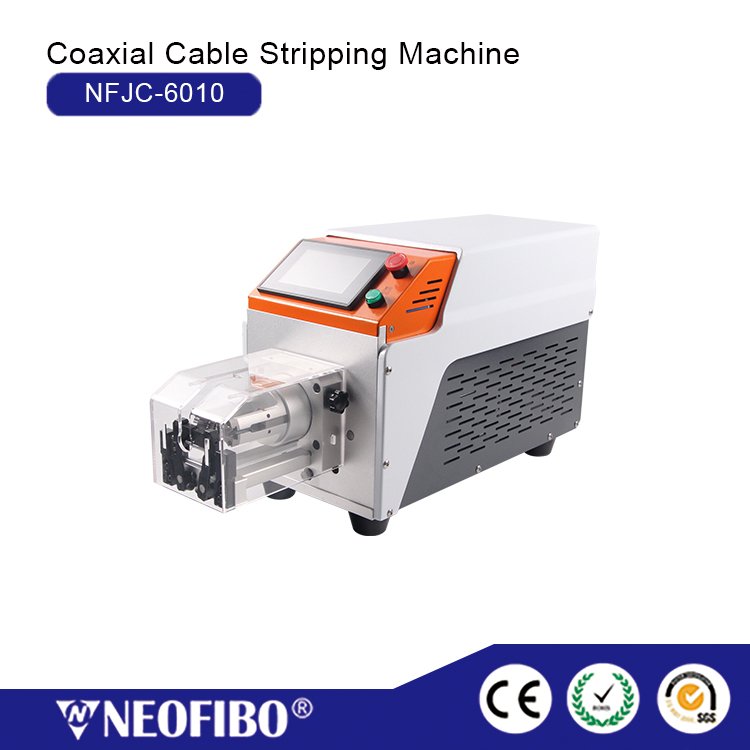

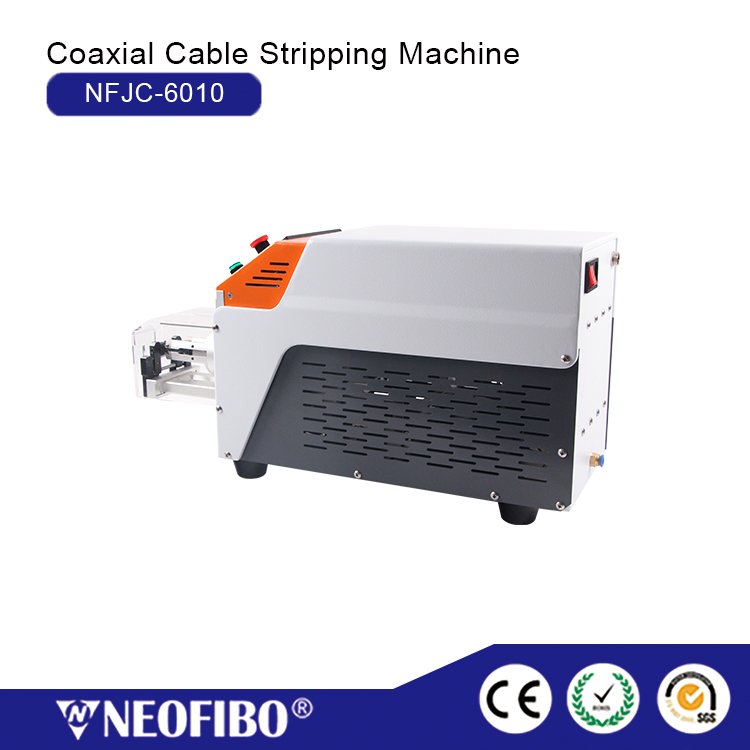

Coaxial Cable Stripping Machine, NFJC-6010

Coaxial Cable Stripping Machine, NFJC-6010

Model: NFJC-6010

Origin: China

Brand: Neofibo

Product Description：

NFJC – 6010 designed for coaxial cable sheath stripping operations and is equipped with an advanced LCD touch screen for intuitive and convenient operation. The machine is driven by ball screws for stable operation and high precision. The stripping length can be flexibly adjusted from 0.1 to 60mm, and the cable diameter can be applied from 0.8 to 10mm, which can meet the requirements of various cable specifications. The tool is made of imported tungsten steel, with high hardness and wear resistance, effectively guaranteeing the quality of cable stripping and the service life of the tool. The working mode has both single and continuous mode, which can be switched flexibly according to the actual operation scenario. Applicable to a wide range of cables, including flexible/semi-flexible coaxial cables, semi-steel coaxial cables, corrugated coaxial cables, threaded coaxial cables, three-axis cables, as well as charging pile cables, BV cables, sheathed cables, shielded cables, feeder cables, and other types of cables.

Key Features：

• Convenient operation interface：Equipped with LCD touch screen, the operation is intuitive, you can easily set the parameters and equipment control.
• Precision Drive System：It adopts ball screw drive to ensure stable operation and high precision of cablestripping, which can accurately control the stripping length.
• Flexible Stripping Length: Stripping length ranges from 0.1 – 60mm, which can be flexibly adjusted according to different needs, applicable to a variety of stripping scenarios.
• Wide range of cable diameter compatibility: cable diameter range of 0.8 – 10mm, to meet the different thicknesses of all kinds of cable stripping operations.
• High-quality tool material: the tool is made of imported tungsten steel, with high hardness and wear resistance, which ensures the quality of cable stripping and the service life of the tool.
• Diversified working modes:the working mode has single-action and continuous mode, which can be freely switched according to the actual working condition, improving the working efficiency.
• Wide range of cable application: the applicable cables are extremely wide, covering flexible/semi-flexible coaxial cables, semi-steel coaxial cables, corrugated coaxial cables, threaded coaxial cables, three-axis cables, as well as charging pile cables, BV cables, sheathed cables, shielded cables, feeder cables and so on.

Specification：

Standard Configuration：
