Aluminum Oxide Polishing Film

Aluminum Oxide Polishing Film

Model:–

Origin: China

Brand: Neofibo

Production Description:

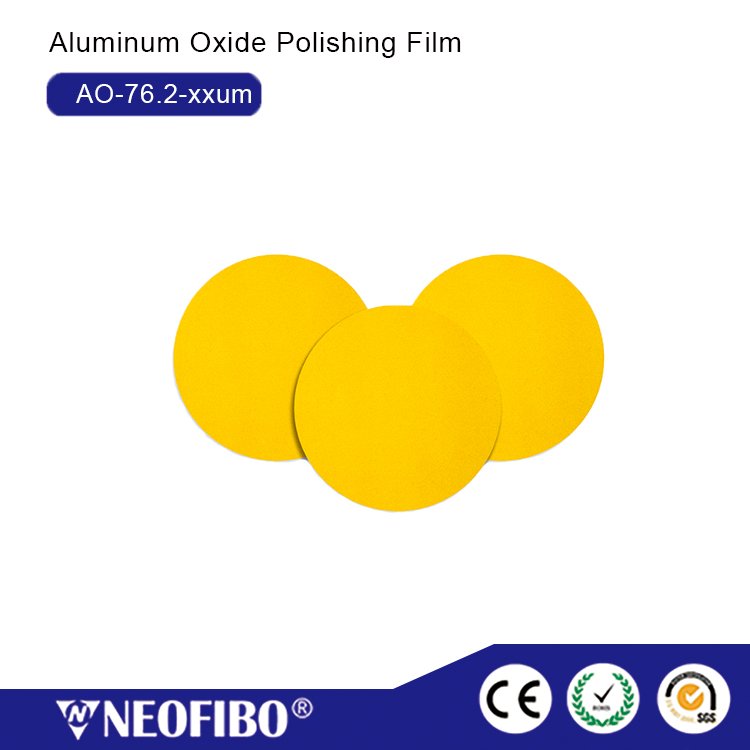

This aluminum Oxide fiber optic polishing film is available in two versions: without adhesive backing and with PSA (pressure-sensitive adhesive) backing. Using an ultra-precise coating process, aluminum oxide abrasive particles are evenly applied to a high-strength PE film substrate; the diameter is 76.2 mm, and the substrate thickness is 3 mil. It is suitable for coarse grinding, fine grinding, and pre-polishing of the end faces of ceramic ferrules in various fiber optic connectors, and is widely used in fiber optic patch cord production, optical component assembly, and testing and polishing processes.

Key Features：

The aluminum oxide abrasive particles are evenly distributed, ensuring consistent polishing efficiency and a low rate of scratches on the core end-face;
The 3-mil-thick PET substrate offers excellent toughness, minimizing the risk of wrinkling during polishing;

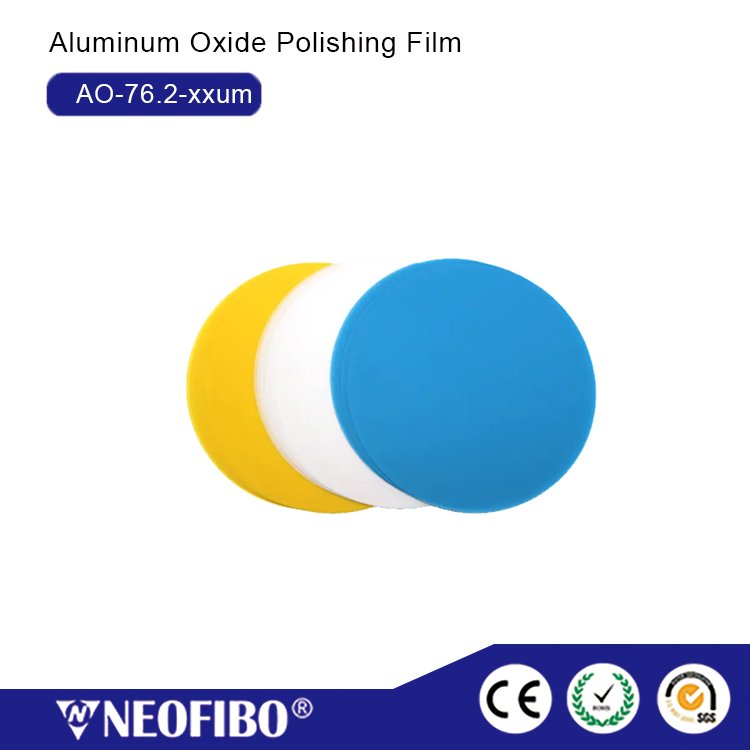

Available in two versions-without adhesive backing and with PSA (pressure-sensitive adhesive) backing-providing multiple options to choose from;
Available in multiple grit sizes-1μm, 3μm, 5μm, 9μm, 10μm, and 15μm-to meet the needs of multiple polishing processes.
Customizable in both square and round shapes; sandpaper diameter can be customized;
Wide range of applications; suitable for various polishing machines, workpieces, and polishing processes.

Applications：

Coarse & fine polishing of fiber-optic connector ceramic ferrule end-faces.
Grinding and polishing processes for fiber optic patch cords and pigtails.
Pre-polishing for the assembly, inspection, and testing stages of optical components.
Suitable for surface polishing of plastic, metal, glass, and fiber-optic products.

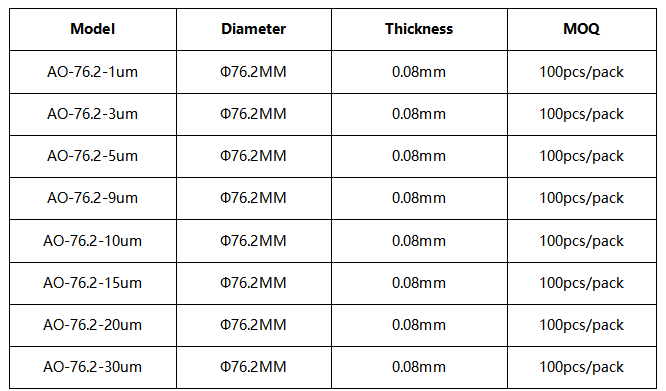

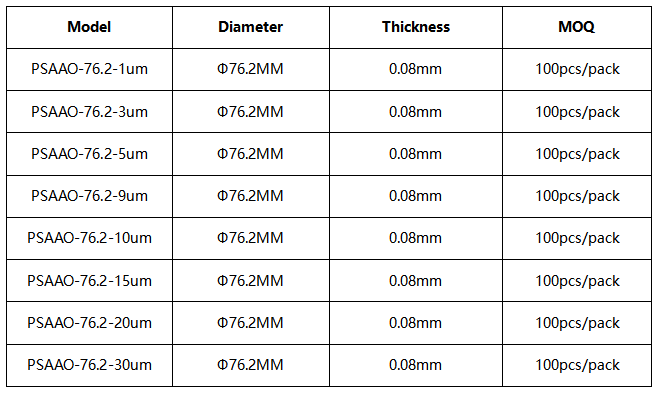

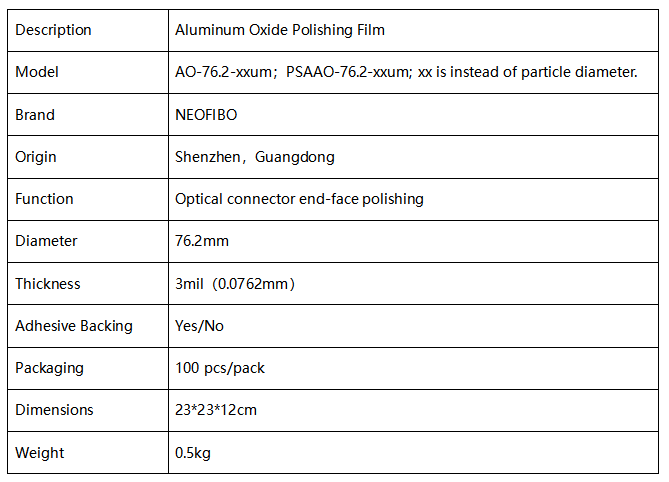

Technical Parameters：
