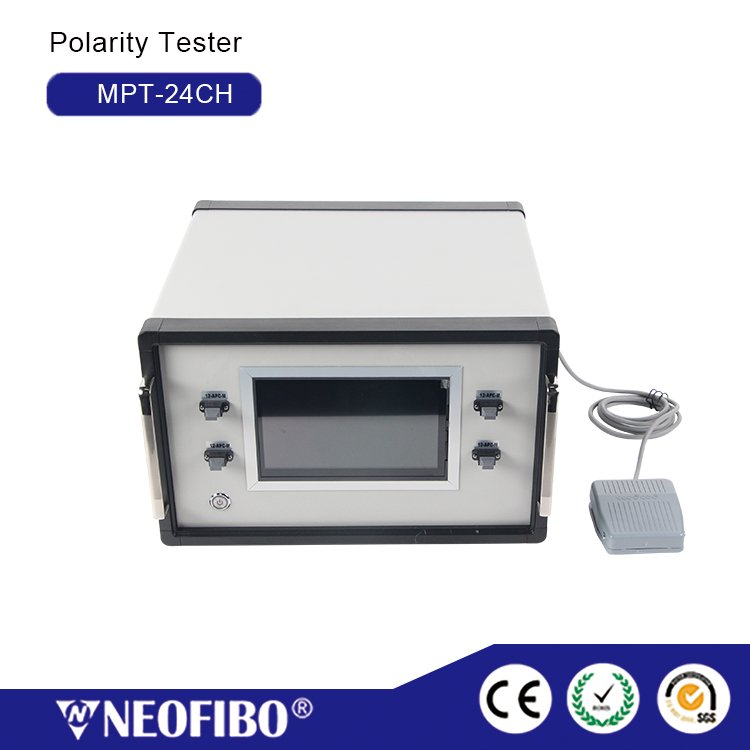

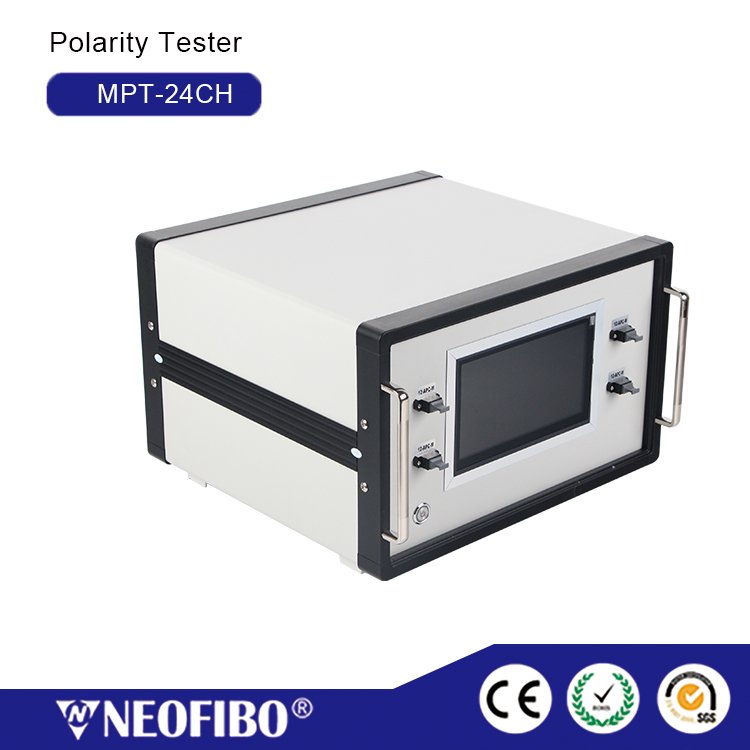

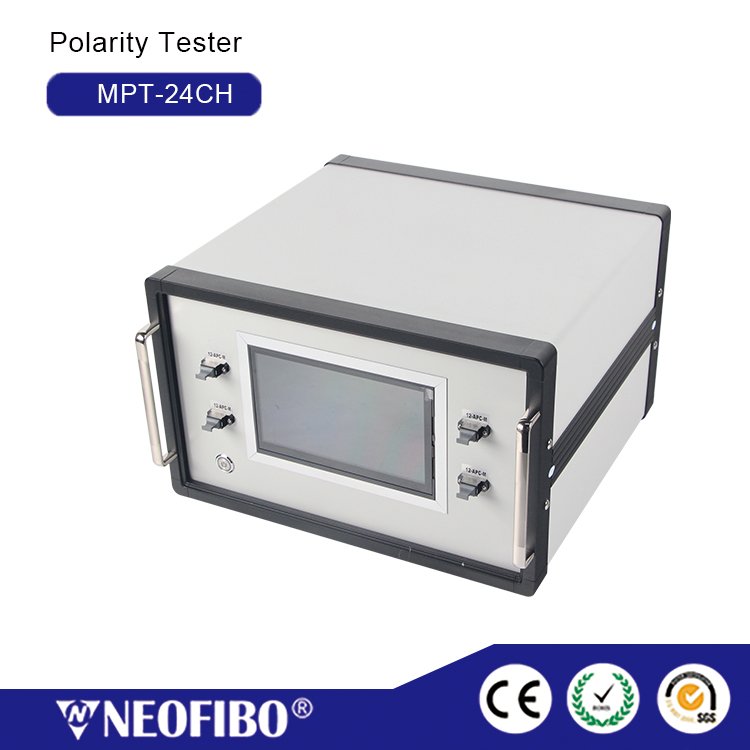

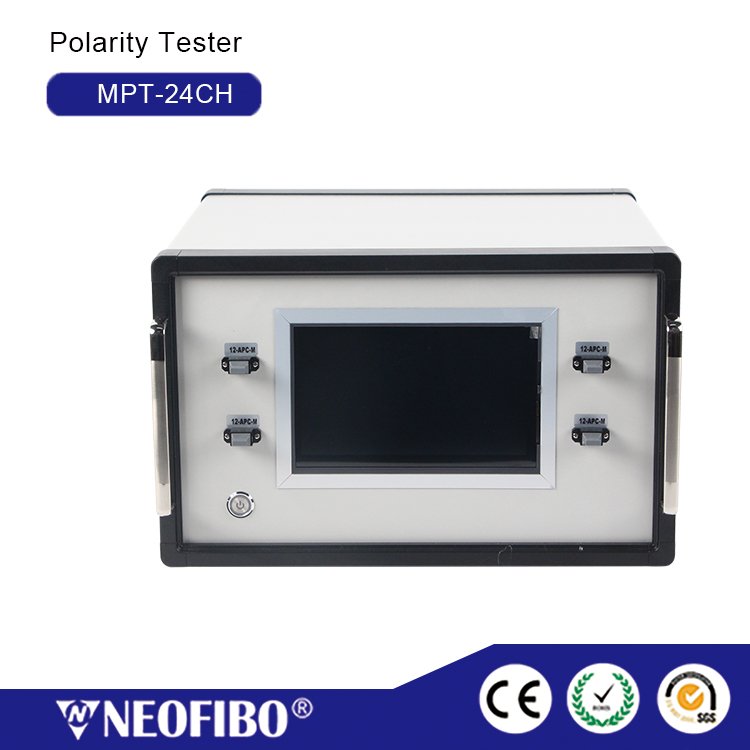

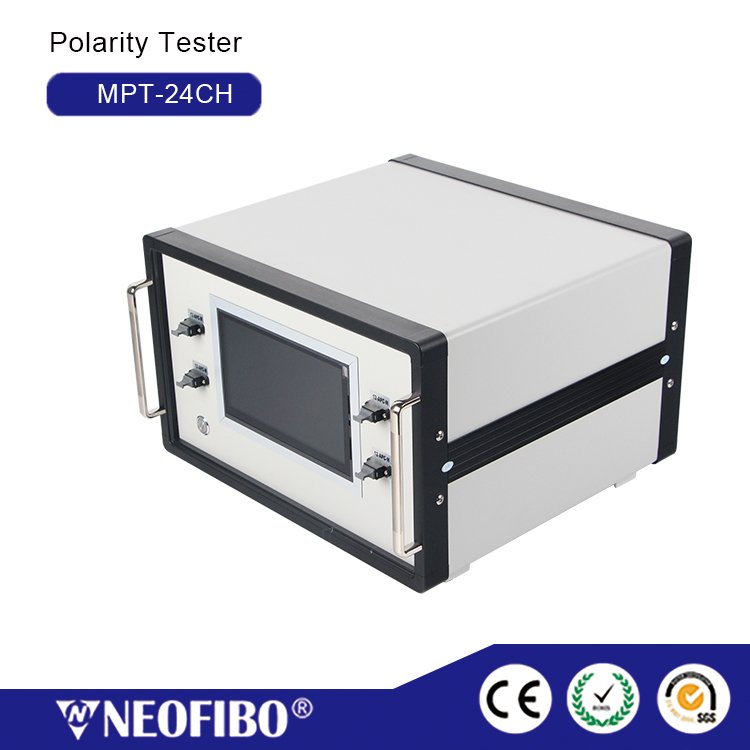

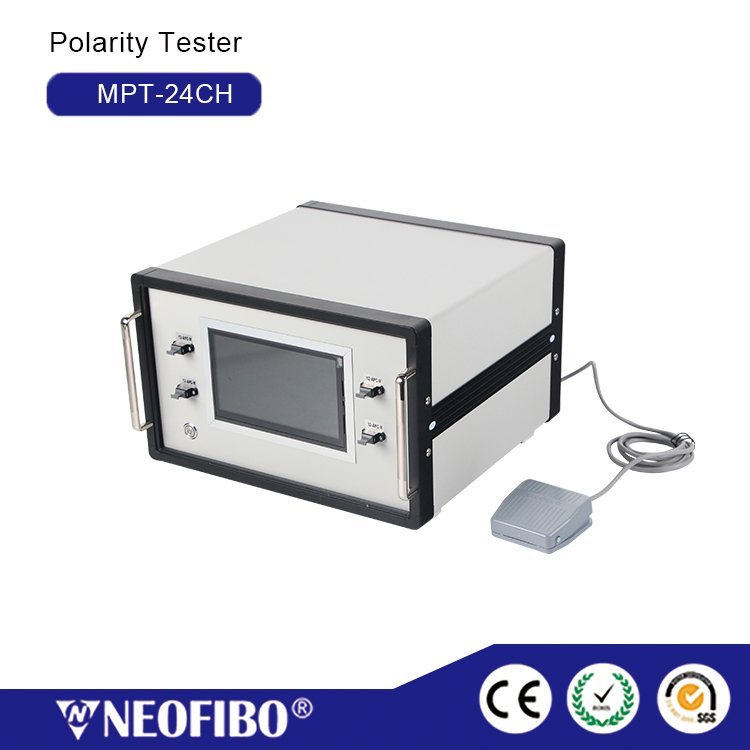

24-channel Polarity Tester, MPT-24CH
Model: MPT-24CH
Origin: China
Brand: Neofibo
Production Description:
The MPT-24CH Polarity Tester is an intelligent device designed for polarity verification and continuity analysis during the production of MPO/MTP cables. Featuring one-touch automatic scanning, it can rapidly display cable continuity status and polarity sequence status. It delivers a fast, accurate and efficient solution for MPO/MTP cable manufacturing, semi-finished product testing and finished product inspection.
1.2 Key Features
- Compatible with testing of 12-core, 16-core, 24-core, 32-core and other special fiber counts;
- Compatible with single-mode 9/125, multi-mode 50/125 and multi-mode 62.5/125 optical fibers;
- Supports custom polarity configuration;
- Adopts 1310 nm laser output;
- 7-inch touch color screen.

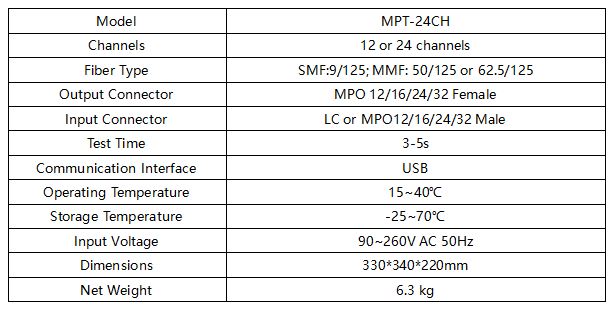

1.3 Specifications

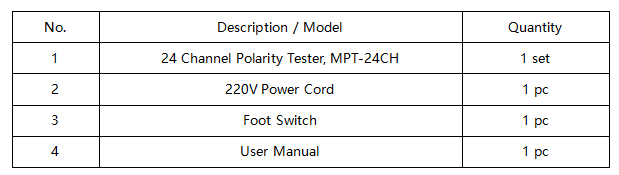

1.4 Standard Configuration List
