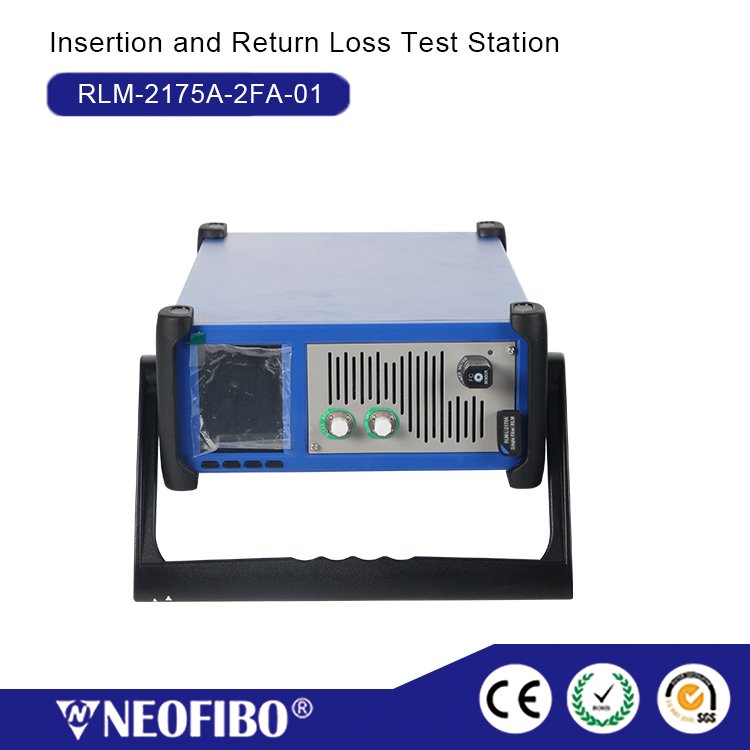

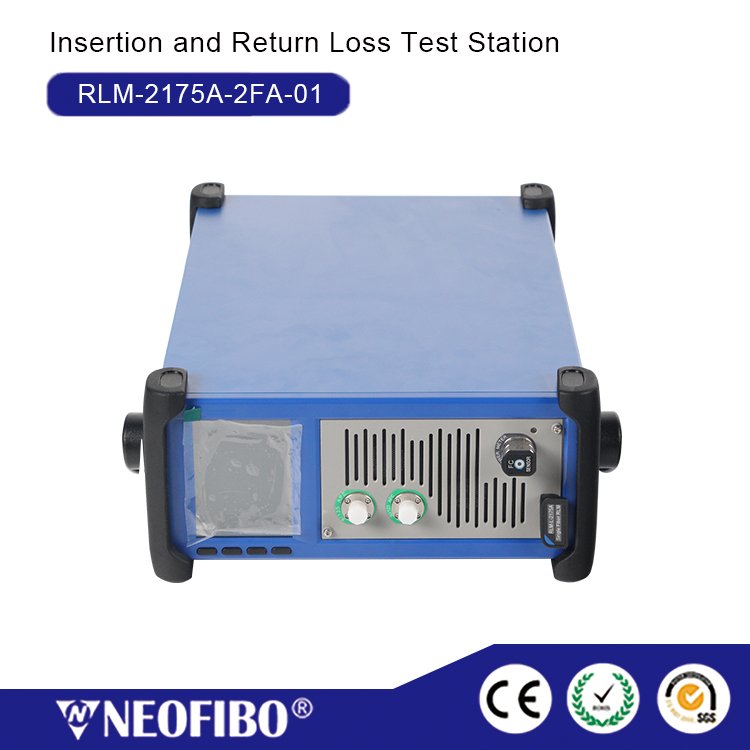

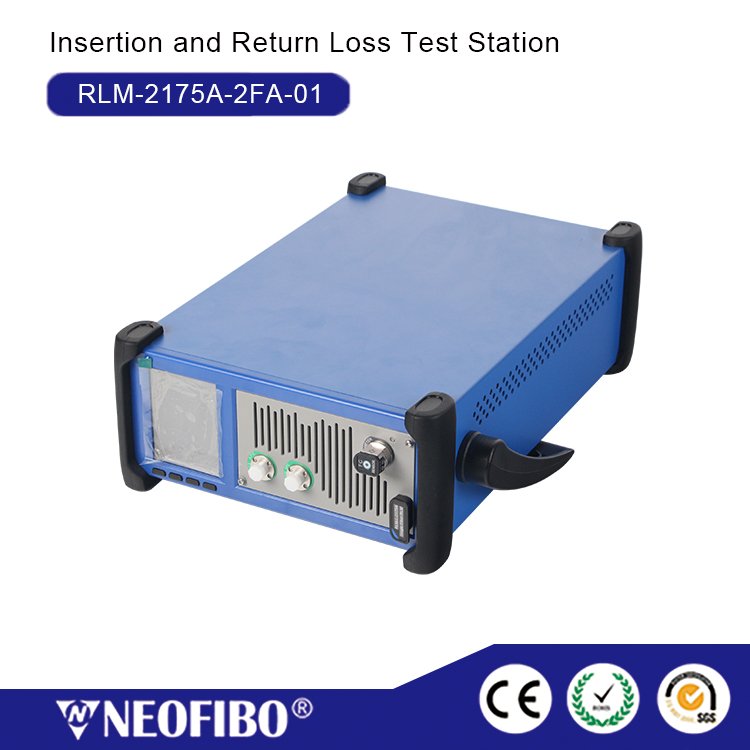

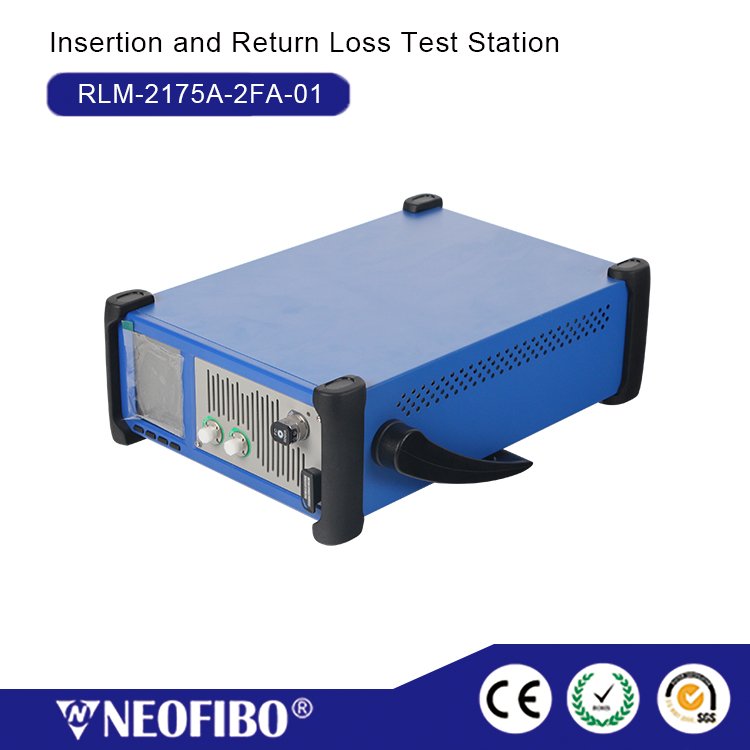

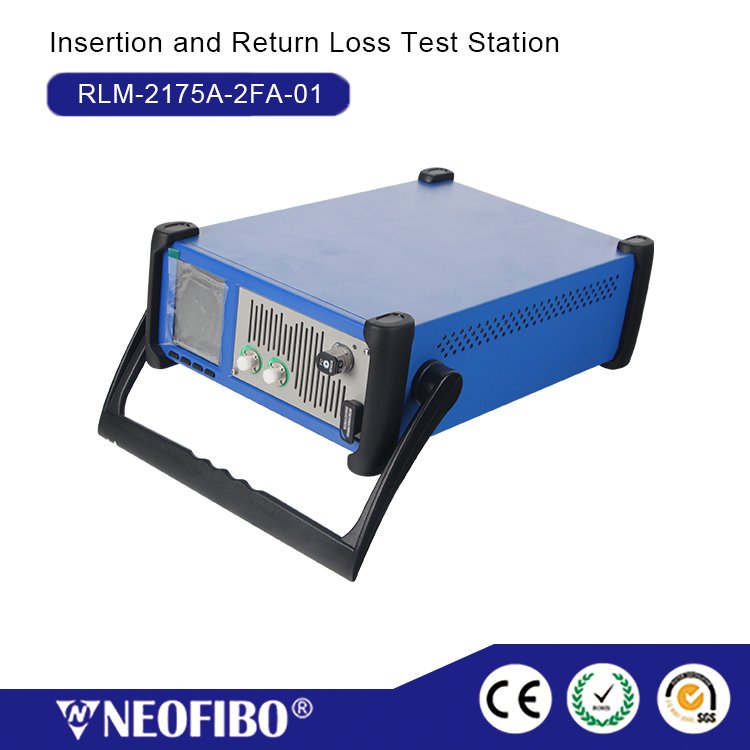

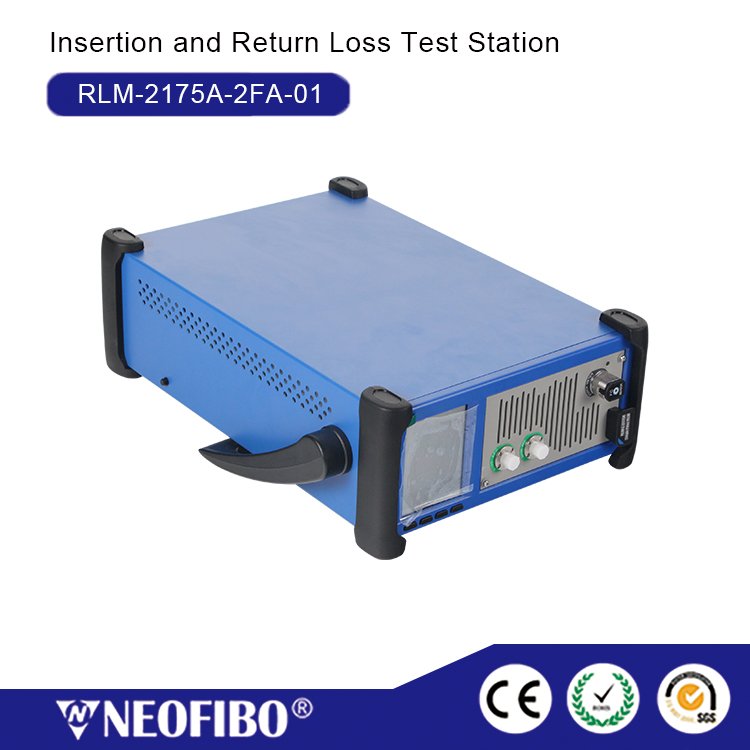

2-channel SM IL & RL Test Station, RLM-2175A-2FA-01
Model: RLM-2175A-2FA-01
Origin: China
Brand: Neofibo
Production Description:
RLM-2175A-2FA-01 single-mode dual-channel insertion loss and return loss test station is equipped with a highly stable light source and a high-precision optical power meter, enabling tangle-free return loss testing and high-speed insertion loss detection. A single-wavelength test takes less than 0.6s, and the return loss detection sensitivity reaches -80dB.
The instrument supports single-mode testing with a wavelength range covering 1310nm, 1490nm, 1550nm, and 1625nm. With its fast and precise measurement capabilities, it effectively improves production efficiency and provides reliable assurance for product quality control.
Key Features
- Platform + modular design for easy application expansion;
- Tangle-free RL testing with a dual-wavelength test time of less than 0.6s;
- Minimum detectable RL of -80 dB (single-core single-mode);
- Suitable for testing multi-mode connectors or ferrules, with dual-channel test ports;
- Minimum measurable fiber length of 0.7 meters;
- Optical power meter with a minimum detectable power of -50dBm;
- Wide range of interchangeable, high-reliability detector adapter connectors;
- Supports multiple control methods, including buttons, touch, network, and USB;
- Automatically saves test data reports and supports remote control.
- Main Applications: Patch cord and connector performance testing; optical passive component performance testing.

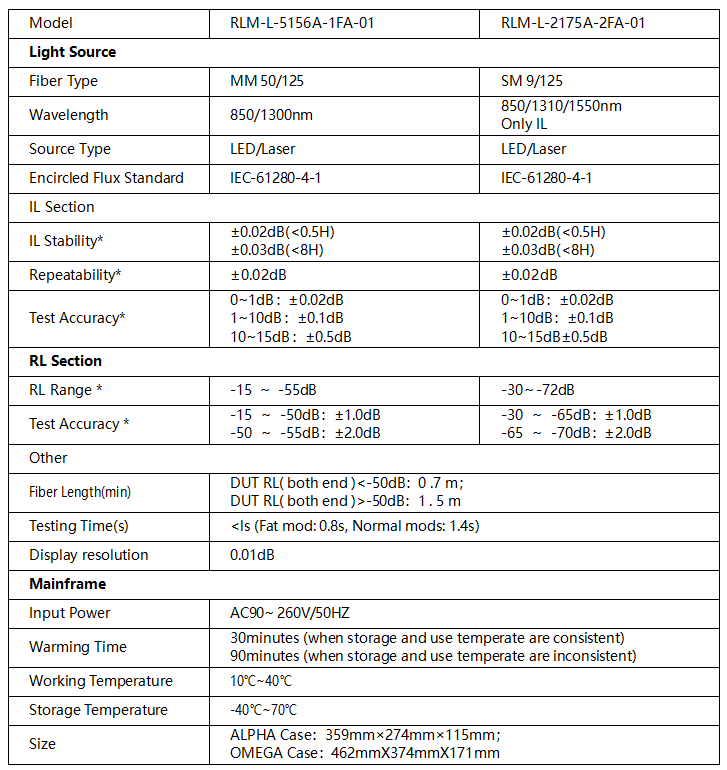

Specification:
** Default test conditions for relevant parameters: Equipment warmed up for 30 minutes; ambient temperature 23 ± 1°C; single-fiber FC/PC patch cord. If testing is performed using multi-fiber cables, the error margin caused by the optical coupler (+/-0.03 dB) must be factored into the parameters.

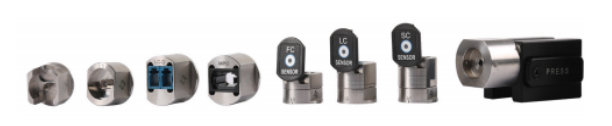

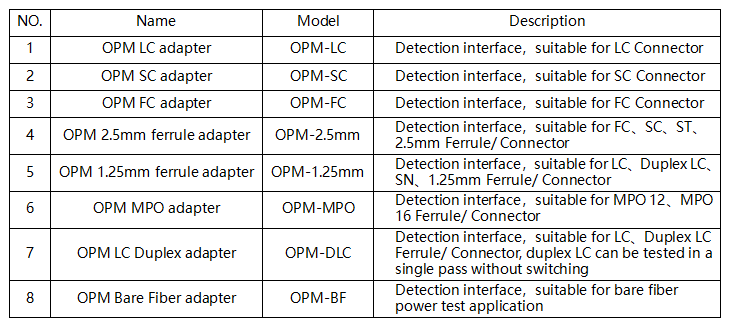

Detector Adapters Selection Guide：
Common connector types:
